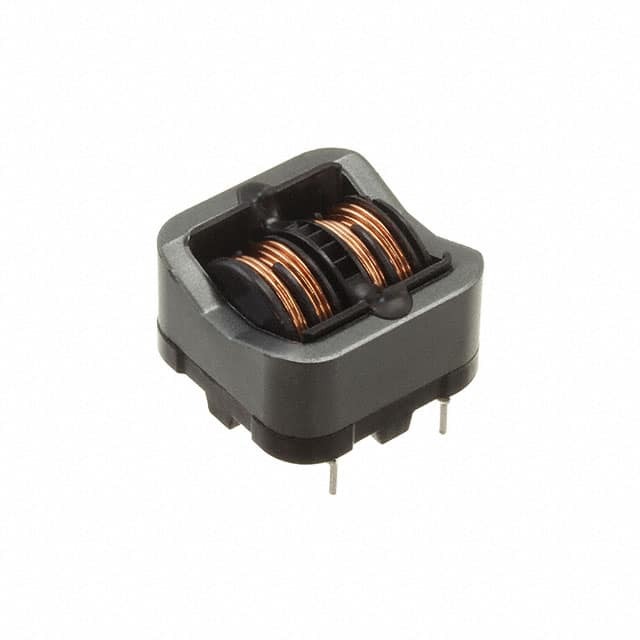

SSRH24NH-45059 Kemet
Same model may have multiple batches, images only for reference.

SSRH24NH-45059

Part No SSRH24NH-45059
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSRH
Package Bulk
Number of Lines 2
Inductance @ Frequency 5.9 mH @ 10 kHz
Current Rating (Max) 4.5A
DC Resistance (DCR) (Max) 48mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.004" L x 1.004" W (25.50mm x 25.50mm)
Height (Max) 0.709" (18.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names UALS24H4505900,399-19054
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276530-SSRH24NH-45059
Ultra Librarian 3D Model Ultra Librarian SSRH24NH-45059 CAD Model

Description

The SSRH24NH-45059 is a common mode choke that has a voltage rating of 250V and a maximum current rating of 4.5A.

  • Product Name: SSRH24NH-45059
  • Voltage Rating: 250V
  • Maximum Current Rating: 4.5A
  • Height: 0.709 inches
  • Length and Width: 1.004 inches
  • Lines: Two
  • Inductance: 5.9 mH @ 10 kHz
  • DC Resistance: 48 mOhm max
  • Mounting Type: Through-hole
  • Package Type: Vertical, 4 PC pin
  • Series: SSRH
  • Operating Temperature: -25°C to 120°C
  • Supply: Bulk
  • Standard Package: 600 pieces
  • REACH: Unaffected
  • ECCN: EAR99
  • Also Known As: UALS24H4505900, 399-19054
