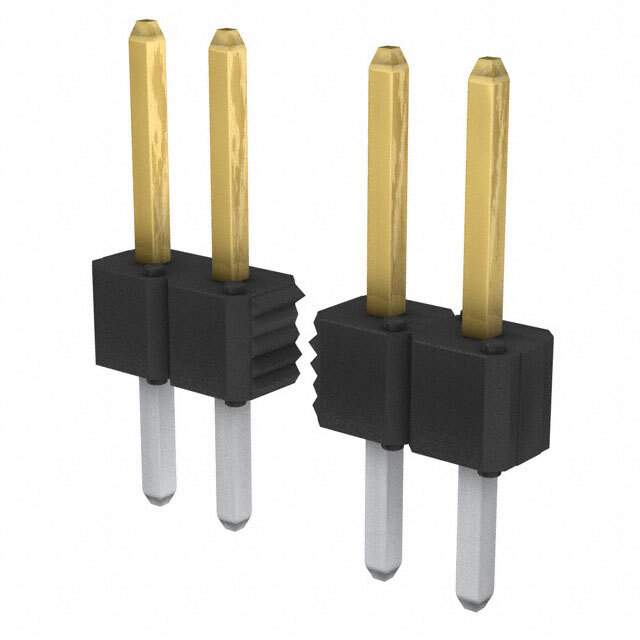

The 1060083-54101-G10-05-A04 is a connector that is part of the BERGSTIK® series.

• Series: BERGSTIK®
• Win Source Part Number: 1060083-54101-G10-05-A04
• Connector Type: Header
• Contact Type: Male Pin
• Positions Loaded: 4
• Number of Rows: 1
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tape and Reel (TR)
• Contact Material: Phosphor Bronze
• Voltage Rating: Not Specified
• Mated Stacking Heights: Not Specified
• Ingress Protection: Not Specified
• Material Flammability Rating: UL94 V-0
• Insulation Material: Not Specified
• Style: Board to Board
• Pitch (Mating): 0.100” (2.54mm)
• Contact Finish (Mating): Gold or Gold, GXT™
• Contact Finish Thickness (Mating): 30.0µin (0.76µm)
• Insulation Color: Black
• Mounting Type: Through Hole
• Shrouding: Unshrouded
• Row Spacing (Mating): Not Specified
• Contact Length (Post): 0.150” (3.81mm)
• Overall Contact Length: 0.480” (12.19mm)
• Insulation Height: 0.100” (2.54mm)
• Contact Shape: Square
• Operating Temperature: -65°C ~ 125°C
• Contact Length (Mating): 0.230” (5.84mm)
• Alternative Parts: 54101-G10-05-A04, 54101G1005A04
• MSL Level: 1 (Unlimited)
• Current Rating: 3A per Contact
• REACH Status: REACH Affected
• HTSUS: 8536.69.4040
• Manufacturer: Amphenol ICC (FCI)
• Base Product Number: 54101
• RoHS Status: RoHS Non-Compliant
