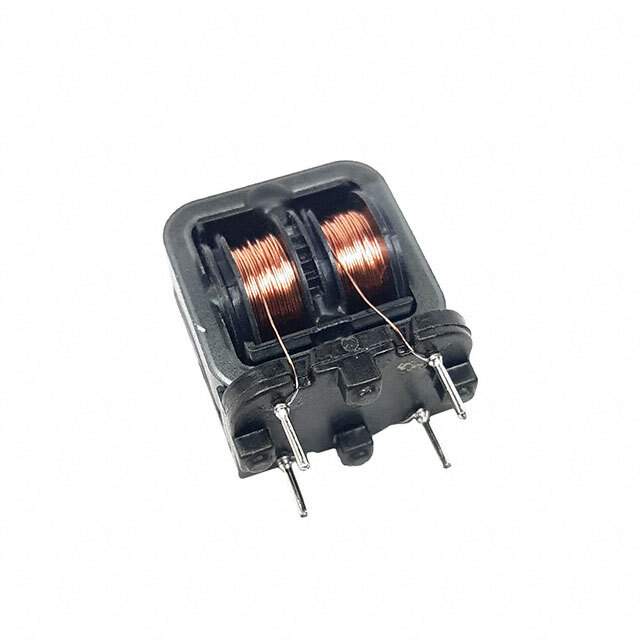

SSR21NV-M15220 Real Image
Same model may have multiple batches, images only for reference.

SSR21NV-M15220

Part No SSR21NV-M15220
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 22 mH @ 10 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 260mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.630" W (22.00mm x 16.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR21NV
Other Names UALM21V1522000,399-19535
Standard Package 450
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276608-SSR21NV-M15220
Ultra Librarian 3D Model Ultra Librarian SSR21NV-M15220 CAD Model

Description

The KEMET SSR21NV-M15220 is a common mode choke filter that has an inductance of 22 mH @ 10 kHz and a DC resistance (DCR) of 260mOhm.

  • Inductance: 22 mH @ 10 kHz
  • DC Resistance (DCR): 260mOhm
  • Maximum Current Rating: 1.5A
  • Voltage Rating: 250V (AC)
  • Height: 1.063" (27.00mm)
  • Dimension: 0.866" L x 0.630" W (22.00mm x 16.00mm)
  • Package: Vertical, 4 PC Pin
  • Temperature Range: -25°C to 120°C
  • ECCN: EAR99
  • REACH: Unaffected
  • Agency Approval: None
