Same model may have multiple batches, images only for reference.

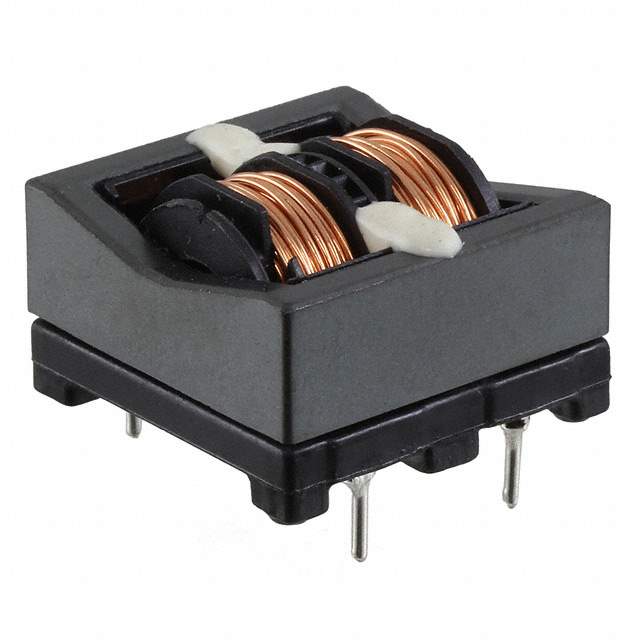

SSR21H-12150 Real Image
Same model may have multiple batches, images only for reference.

SSR21H-12150

Part No SSR21H-12150
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SSR21H-12150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR21H
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 15 mH @ 10 kHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 320mOhm
Voltage Rating - DC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height (Max) 0.571" (14.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR21H
Other Names 399-10772,399-10772,399-SSR21H-12150,UALR21H1215000
Standard Package 420
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276545-SSR21H-12150
Ultra Librarian 3D Model Ultra Librarian SSR21H-12150 CAD Model

Description

This electronic component is a common mode choke manufactured by KEMET.

  • Manufacturer: KEMET
  • Win Source Part Number: 1276545-SSR21H-12150
  • Series: SSR21H
  • Lines: 2
  • Inductance: 15 mH @ 10 kHz
  • Type: Through-hole
  • Voltage Rating: 250VDC
  • Current Rating: 1.2A
  • RoHS: Compliant
  • Operating Temperature: Between -25°C to 120°C
