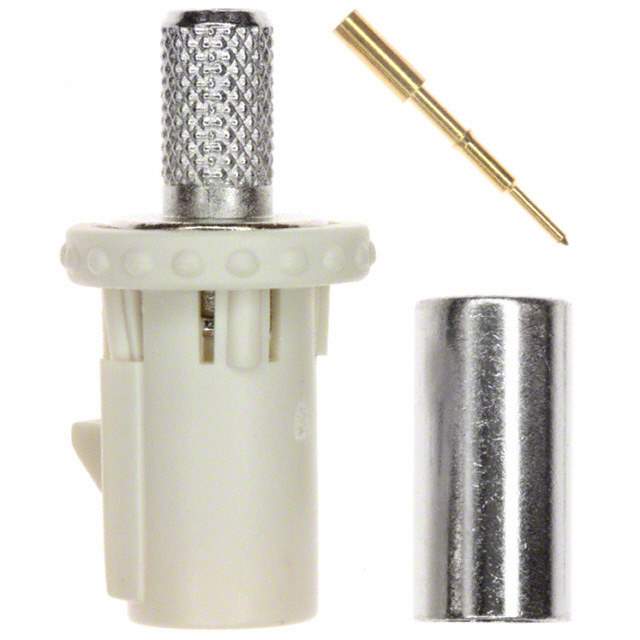

Same model may have multiple batches, images only for reference.

2FA1-NBSP-C04-1

Name: 2FA1-NBSP-C04-1
Brand: Amphenol-RF Division
SKU: 508691
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2FA1-NBSP-C04-1
Manufacturer	Amphenol-RF Division
Catalog	Coaxial Connectors (RF)
Description	CONN FAKRA PLUG STR 50 OHM CRIMP
Datasheet	2FA1-NBSP-C04-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol RF Division
Packaging	Tray
Status	Active
Connector Style	SMB, Fakra
Connector Type	Plug, Male Pin
Contact Termination	Crimp
Shield Termination	Crimp
Impedance	50 Ohm
Mounting	Free Hanging (In-Line)
Cable Group	RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Fastening Type	Locking Ramp
Maximum Input Frequency	4GHz
Features	Code B
Housing Color	Cream
Includes	3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Material	Zinc Die Cast
Body Finish	Nickel
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE), Polymethylpentene (PMP)
Temperature Range - Operating	-40°C to 115°C
Center Contact Material	Brass
Mating Cycles	100
Insertion Loss	0.3dB
Win Source Part Number	1092029-2FA1-NBSP-C04-1
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 2FA1-NBSP-C04-1 CAD Model

Alternative Products

Description

The Amphenol RF Division's electronic component with Win Source Part Number 1092029-2FA1-NBSP-C04-1 is a connector with a plug, male pin.

Fastening Type: Locking Ramp
Contact Termination: Crimp
Connector Style: SMB, Fakra
Impedance: 50 Ohm
Connector Type: Plug, Male Pin
