Same model may have multiple batches, images only for reference.

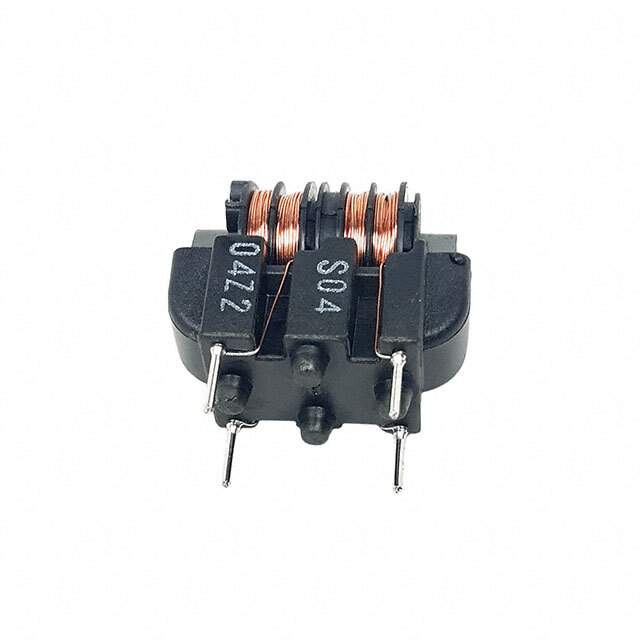

SSR10VS-10135 Real Image
Same model may have multiple batches, images only for reference.

SSR10VS-10135

Part No SSR10VS-10135
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 13.5 mH @ 10 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 430mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10VS
Other Names 399-19041,UALR10VS101350
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276631-SSR10VS-10135
Ultra Librarian 3D Model Ultra Librarian SSR10VS-10135 CAD Model

Description

The KEMET SSR10VS-10135 is a common mode choke product manufactured by KEMET.

  • Supply and Demand Status: Balanced
  • Voltage Rating: 250V
  • Current Rating: 1A
  • DC Resistance: 430mOhm
  • Inductance: 13.5 mH @ 10 kHz
  • Temperature Range: -25°C to 120°C
  • Mounting Type: Through-Hole
  • Package/Case: Vertical, 4 PC Pin
