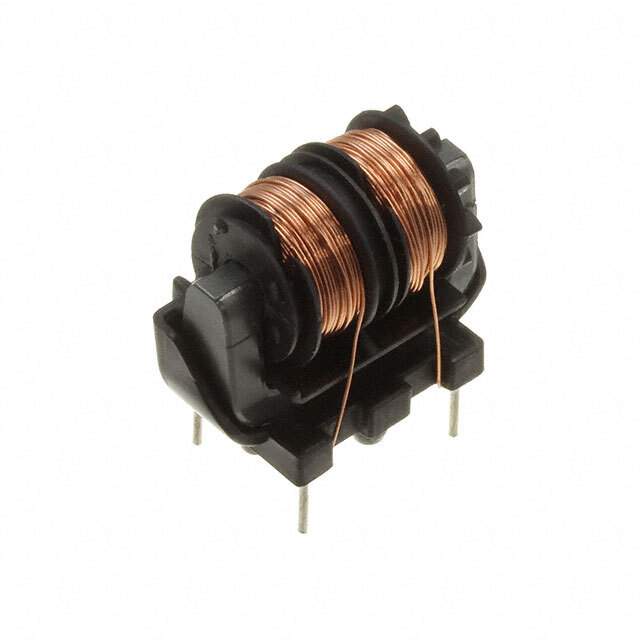

Same model may have multiple batches, images only for reference.

SSR10V-22034

Name: SSR10V-22034
Brand: Kemet
SKU: 1276600
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSR10V-22034
Manufacturer	Kemet
Catalog	Common Mode Chokes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	KEMET
Series	SSR
Package	Bulk
Number of Lines	2
Inductance @ Frequency	3.4 mH @ 10 kHz
Current Rating (Max)	2.2A
DC Resistance (DCR) (Max)	110mOhm
Voltage Rating - AC	250V
Temperature Range - Operating	-25°C ~ 120°C
Mounting Type	Through Hole
Dimension	0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max)	0.827" (21.00mm)
Package / Case	Vertical, 4 PC Pin
Base Product Number	SSR10V
Other Names	399-19034,UALR10V2203400
Standard Package	600
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	1276600-SSR10V-22034
Ultra Librarian 3D Model	Ultra Librarian SSR10V-22034 CAD Model

Description

The KEMET SSR10V-22034 is a common mode choke that is designed for filtering electronic signals.

Series: SSR series
Packaging: Bulk packaged
Voltage Rating: 250V AC
Maximum Current Rating: 2.2A
Inductance @ Frequency: 3.4 mH @ 10 kHz
DC Resistance (DCR): 110mOhm
Mounting: Through-hole mounted
Package/Case: Vertical, 4 PC pin
Temperature Range: -25°C to 120°C
