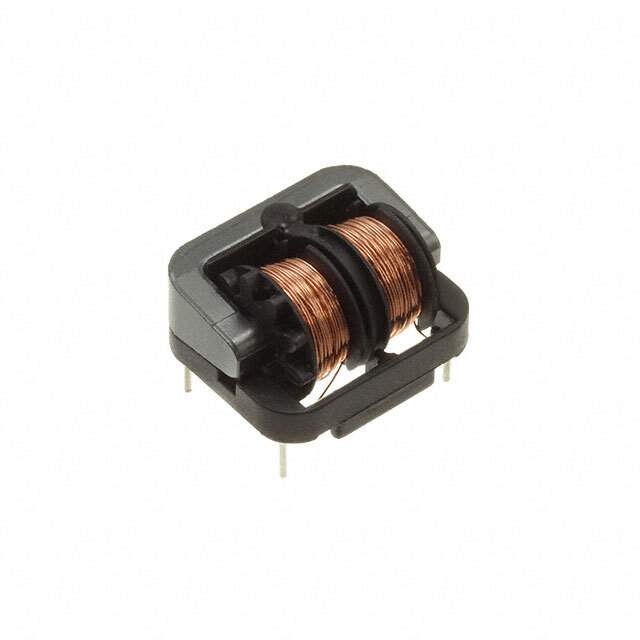

SSR10H-11140 Real Image
Same model may have multiple batches, images only for reference.

SSR10H-11140

Part No SSR10H-11140
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 14 mH @ 10 kHz
Current Rating (Max) 1.1A
DC Resistance (DCR) (Max) 370mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 0.531" (13.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10H
Other Names 399-19009,UALR10H1114000
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276626-SSR10H-11140
Ultra Librarian 3D Model Ultra Librarian SSR10H-11140 CAD Model

Description

The KEMET SSR10H-11140 common mode choke is a through-hole component designed for filters.

  • Inductance: 14 mH @ 10 kHz
  • DC Resistance (DCR): 370mOhm
  • Voltage Rating: 250V
  • Current Rating: 1.1A
