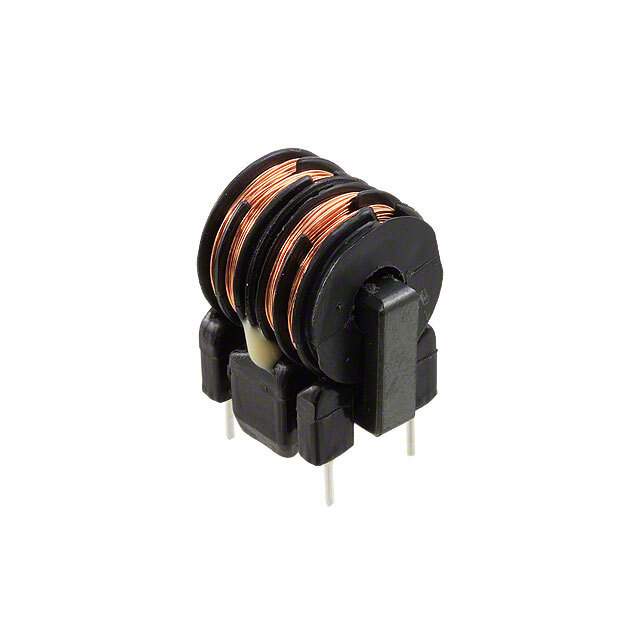

Same model may have multiple batches, images only for reference.

SS21V-R110100

Name: SS21V-R110100
Brand: Kemet
SKU: 1276733
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SS21V-R110100
Manufacturer	Kemet
Catalog	Common Mode Chokes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	KEMET
Series	SS
Package	Tray
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	10 mH @ 1 kHz
Current Rating (Max)	1.1A
DC Resistance (DCR) (Max)	450mOhm
Voltage Rating - AC	250V
Temperature Range - Operating	-25°C ~ 120°C
Mounting Type	Through Hole
Dimension	0.807" L x 0.650" W (20.50mm x 16.50mm)
Height (Max)	1.004" (25.50mm)
Package / Case	Vertical, 4 PC Pin
Base Product Number	SS21V
Other Names	399-10576,UAL21VR1101000
Standard Package	600
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.31.4065
Win Source Part Number	1276733-SS21V-R110100
Ultra Librarian 3D Model	Ultra Librarian SS21V-R110100 CAD Model

Description

The KEMET SS21V-R110100 is a common mode choke filter designed for power line filtering applications.

Filter Type: Two-line filter
Inductance: 10mH @ 1kHz
Maximum DC Resistance: 450mOhm
Voltage Rating for AC: 250V
Current Rating: 1.1A
Mounting: Through a hole
Package: Vertical, 4 PC pin
Temperature Range: -25°C to 120°C
Length: 0.807 inches
Width: 0.650 inches
Packaging: Tray with 600 units per package
ECCN: EAR99
REACH: Unaffected
