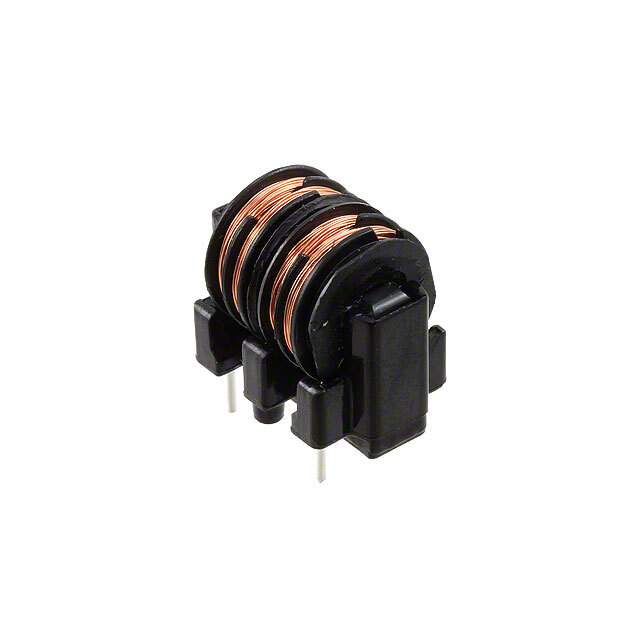

SS11VL-R03820 Real Image
Same model may have multiple batches, images only for reference.

SS11VL-R03820

Part No SS11VL-R03820
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 82 mH @ 1 kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 4.1Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.571" W (22.00mm x 14.50mm)
Height (Max) 0.807" (20.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS11VL
Other Names UAL11VLR038200,399-10550
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276742-SS11VL-R03820
Ultra Librarian 3D Model Ultra Librarian SS11VL-R03820 CAD Model

Description

The KEMET SS11VL-R03820 is a power line common mode choke from the SS series.

  • Mounting: Through-hole
  • Package/Case: 4 PC pin, which is mounted vertically
  • Voltage Rating: 250V AC
  • Maximum Current Rating: 300mA
  • Inductance: 82mH @ 1kHz
  • DC Resistance (DCR): 4.1Ohm
  • Designed for: Use in filters, specifically common mode chokes
  • Height: 20.50mm
  • Dimension: 22.00mm x 14.50mm
  • Temperature Range: -25°C to 120°C
  • Standard Package: 600 units in bulk
  • REACH: Unaffected
  • ECCN: EAR99
