Same model may have multiple batches, images only for reference.

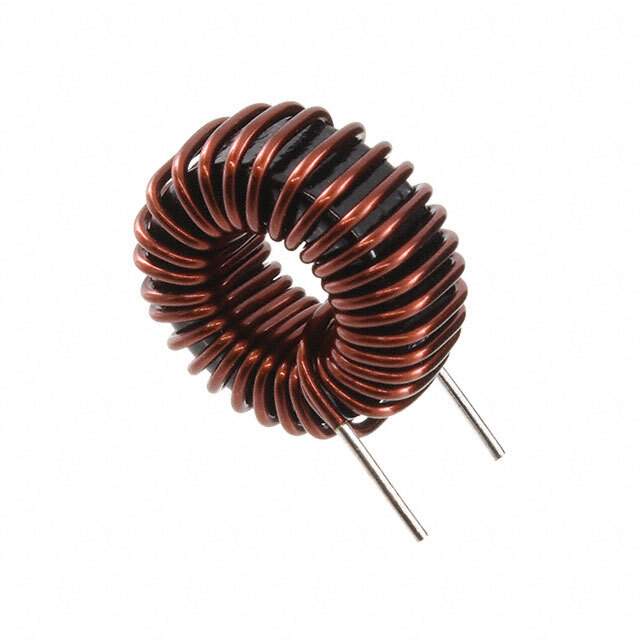

SNT-S30T Real Image
Same model may have multiple batches, images only for reference.

SNT-S30T

Part No SNT-S30T
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SNT-S30T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SNT
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 13 µH @ 100 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 95Ohm
Temperature Range - Operating -20°C ~ 60°C
Mounting Type Through Hole
Dimension 0.374" L x 0.197" W (9.50mm x 5.00mm)
Height (Max) 0.500" (12.70mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SNT-S
Other Names UDLSNT0S30T000,399-SNT-S30TTR
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276807-SNT-S30T
Ultra Librarian 3D Model Ultra Librarian SNT-S30T CAD Model

Description

The SNT-S30T is a common mode choke filter from KEMET.

  • Mounting Type: Through-hole
  • Maximum Current Rating: 500mA
  • Height: 0.500 inches (12.70mm)
  • Filter Type: Signal line
  • Inductance: 13 µH @ 100 kHz
  • DC Resistance (DCR): 95Ohm
  • Temperature Range: -20°C to 60°C
