Same model may have multiple batches, images only for reference.

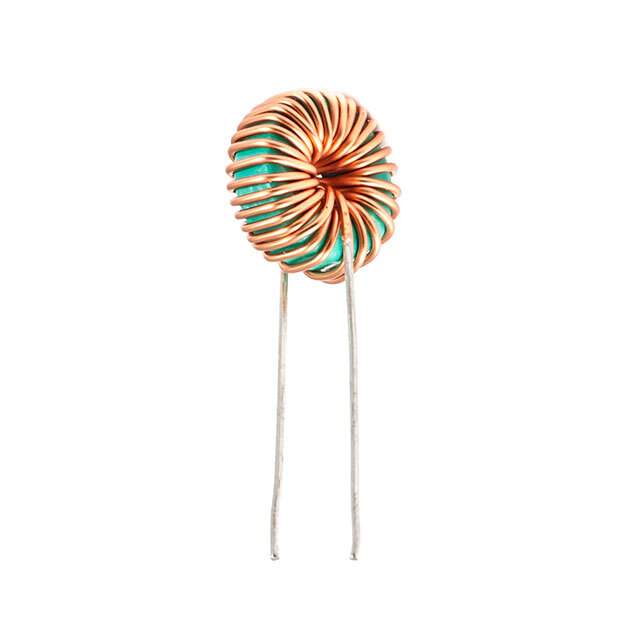

SN16-400 Real Image
Same model may have multiple batches, images only for reference.

SN16-400

Part No SN16-400
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN16-400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 108 µH @ 100 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 27mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Height (Max) 1.437" (36.50mm)
Package / Case Vertical, No Base, 2 PC Pin
Base Product Number SN16
Other Names 399-20575,UALSN164000000
Standard Package 250
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276832-SN16-400
Ultra Librarian 3D Model Ultra Librarian SN16-400 CAD Model

Description

This common mode choke filter component has a voltage rating of AC and DC, and a current rating of 8A.

  • Voltage Rating: AC and DC
  • Current Rating: 8A
  • Filter Type: Power line
  • Lines: 2 lines
  • Inductance: 108 µH @ 100 kHz
  • DC Resistance (DCR): 27mOhm
  • Mounting: Through hole
  • Package: Vertical, no base, and 2 PC pin
  • Height: 1.437" (36.50mm)
  • Product from: KEMET
  • Other Names: 399-20575 and UALSN164000000
  • ECCN: EAR99
