Same model may have multiple batches, images only for reference.

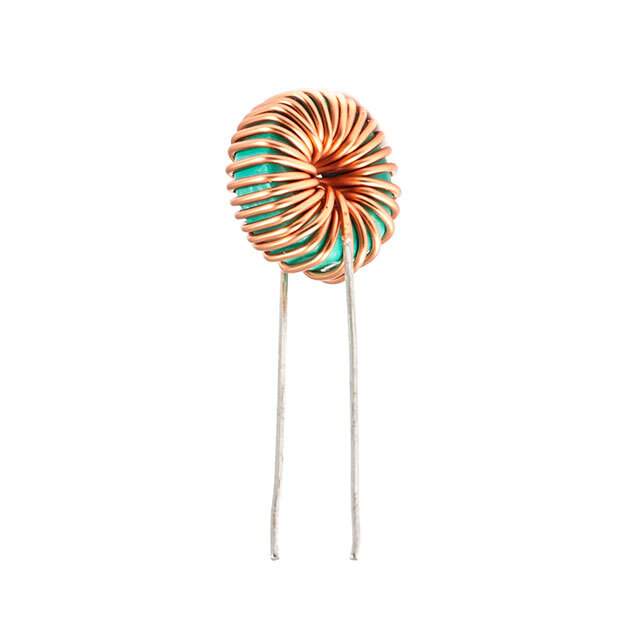

SN16-300 Real Image
Same model may have multiple batches, images only for reference.

SN16-300

Part No SN16-300
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN16-300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 60 µH @ 100 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 21mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Height (Max) 1.398" (35.50mm)
Package / Case Vertical, No Base, 2 PC Pin
Base Product Number SN16
Other Names 399-20574,UALSN163000000
Standard Package 250
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276824-SN16-300
Ultra Librarian 3D Model Ultra Librarian SN16-300 CAD Model

Description

The SN16-300 is a common mode choke filter from KEMET.

  • Mounting Type: Through-hole
  • Maximum Current Rating: 8A
  • Height: 1.398 inches (35.50mm)
  • Filter Type: Power line
  • Inductance: 60 µH @ 100 kHz
  • DC Resistance (DCR): 21mOhm
  • Temperature Range: -25°C to 105°C
