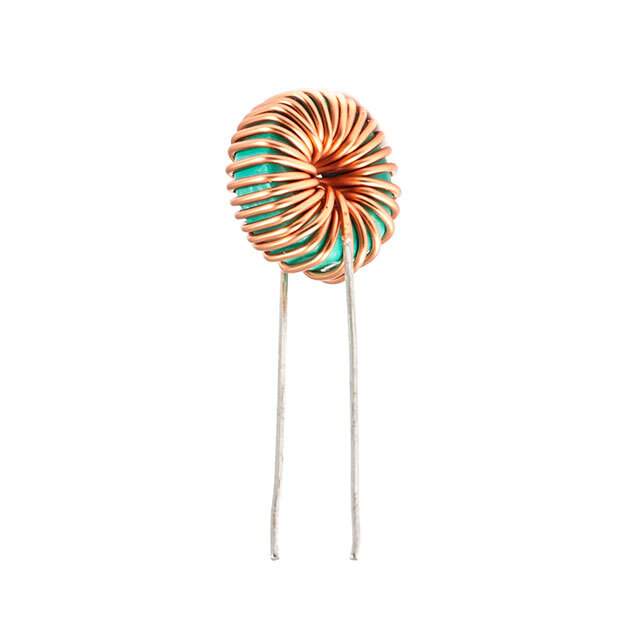

SN13-300 Real Image
Same model may have multiple batches, images only for reference.

SN13-300

Part No SN13-300
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN13-300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 51 µH @ 100 kHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 23mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Height (Max) 1.240" (31.50mm)
Package / Case Vertical, No Base, 2 PC Pin
Base Product Number SN13
Other Names UALSN133000000,399-20571
Standard Package 250
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276825-SN13-300
Ultra Librarian 3D Model Ultra Librarian SN13-300 CAD Model

Description

The Kemet SN series common mode choke is a power line filter type electronic component that is designed to reduce electromagnetic interference in electronic circuits.

  • Maximum Current Rating: 6A
  • Inductance: 51 µH @ 100 kHz
  • DC Resistance: 23mOhm
  • Mounting: Through hole
  • Package/Case: Vertical, no base, 2 PC pin
  • Temperature Range: -25°C to 105°C
