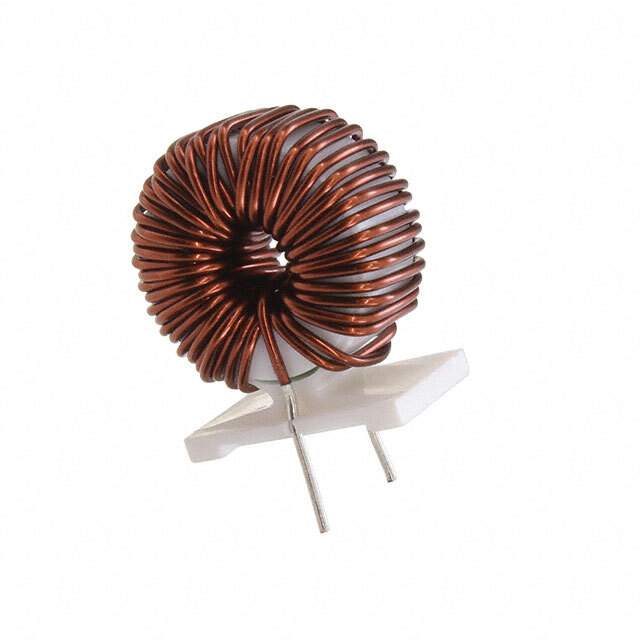

SN10-300J Real Image
Same model may have multiple batches, images only for reference.

SN10-300J

Part No SN10-300J
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN10-300J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 40 µH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 41mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Height (Max) 1.024" (26.00mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SN10
Other Names UALSN10300J000,399-20581
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276827-SN10-300J
Ultra Librarian 3D Model Ultra Librarian SN10-300J CAD Model

Description

The KEMET SN10-300J is a common mode choke-type electronic component that is used in various filters.

  • Series: SN
  • ECCN: EAR99
  • MSL Level: Not applicable
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.50.8000
  • Package: Bulk
  • Standard Package: 600
  • Filter Type: Power line
  • Height (Max): 1.024" (26.00mm)
  • Lines: 2
  • Inductance @ Frequency: 40 µH @ 100 kHz
  • DC Resistance (DCR) (Max): 41mOhm
  • Mounting Type: Through hole
  • Package / Case: Vertical, 2 PC Pin
  • Temperature Range: -25°C ~ 105°C
