Same model may have multiple batches, images only for reference.

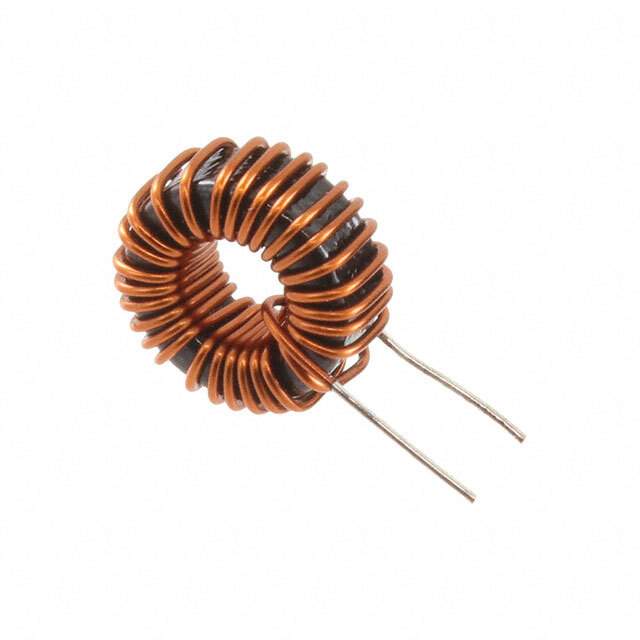

SHBC24W-2R1A0311V Real Image
Same model may have multiple batches, images only for reference.

SHBC24W-2R1A0311V

Part No SHBC24W-2R1A0311V
Manufacturer Kemet
Catalog Fixed Inductors
Datasheet
SHBC24W-2R1A0311V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr KEMET
Series SHBC
Package Bulk
Type Toroidal
Material - Core Alloy Powder
Inductance 311 µH
Tolerance ±20%
Current Rating (Amps) 15 A
Shielding Unshielded
DC Resistance (DCR) 20.1mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Supplier Device Package Radial
Dimension 2.268" Dia (57.60mm)
Height - Seated (Max) 2.268" (57.60mm)
Base Product Number SHBC24W
Other Names UALS4W2R1A0311,399-19150
Standard Package 45
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272741-SHBC24W-2R1A0311V
Ultra Librarian 3D Model Ultra Librarian SHBC24W-2R1A0311V CAD Model

Description

The SHBC24W-2R1A0311V fixed inductor from KEMET is a highly efficient toroidal type inductor that is used in various electronic applications.

  • Packaging: Bulk
  • Standard Package: 45
  • Inductance: 311 µH
  • Tolerance: ±20%
  • Material: Alloy powder material
  • DC Resistance (DCR): 20.1mOhm Max
  • Temperature Range: -40°C ~ 125°C
  • Mounting: Through hole
  • Package/Case: Radial, vertical (open)
  • Supplier Device Package: Radial
