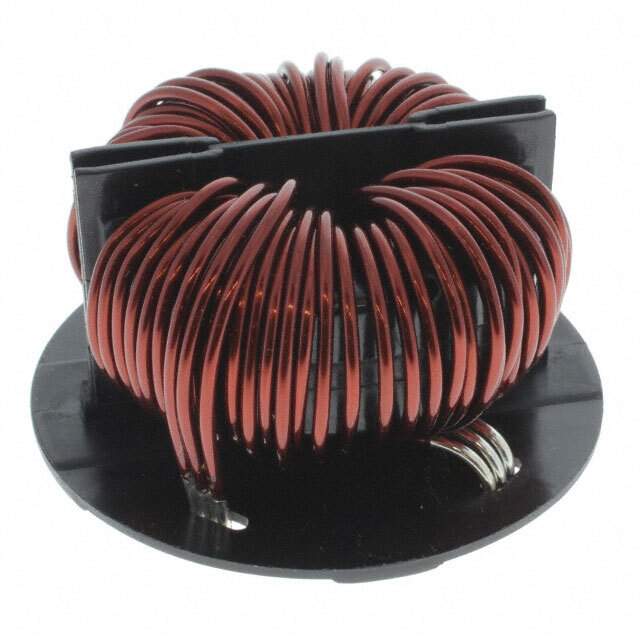

SCR47B-350-1R6C016JH-D Real Image
Same model may have multiple batches, images only for reference.

SCR47B-350-1R6C016JH-D

Part No SCR47B-350-1R6C016JH-D
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.6 mH @ 10 kHz
Current Rating (Max) 35A
DC Resistance (DCR) (Max) 3.5mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 2.756" Dia (70.00mm)
Height (Max) 1.496" (38.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCR47B
Other Names 399-SCR47B-350-1R6C016JH-D,UALBF1R6C016JH
Standard Package 36
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276874-SCR47B-350-1R6C016JH-D
Ultra Librarian 3D Model Ultra Librarian SCR47B-350-1R6C016JH-D CAD Model

Description

The SCR47B-350-1R6C016JH-D is a common mode choke filter manufactured by KEMET.

  • Manufacturer:KEMET
  • Series: SCR
  • Package: Tray
  • Voltage Rating (AC/DC): 250V AC and DC
  • Maximum Current Rating: 35A
  • Filter Type: Power Line
  • Lines: 2
  • Inductance @ Frequency: 1.6 mH @ 10 kHz
  • DC Resistance (DCR): 3.5mOhm @ max
  • Mounting: Through Hole
  • Package/Case: Horizontal, 4 PC pin
  • Operating Temperature Range: 25°C to 120°C
  • Dimension: 2.756" Dia (70.00mm)
  • Win Source Part Number: 1276874-SCR47B-350-1R6C016JH-D
