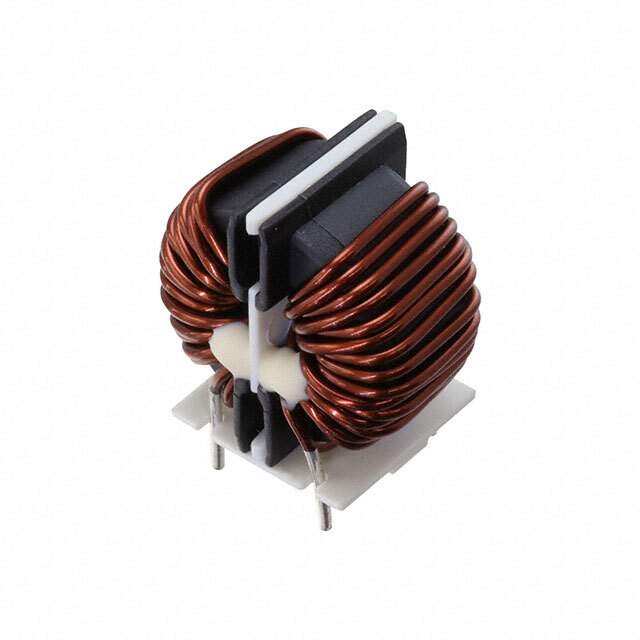

SCR25B-150-1R4A024J Real Image
Same model may have multiple batches, images only for reference.

SCR25B-150-1R4A024J

Part No SCR25B-150-1R4A024J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.4 mH @ 10 kHz
Current Rating (Max) 15A
DC Resistance (DCR) (Max) 11.5mOhm
Voltage Rating - DC 500V
Voltage Rating - AC 500V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.417" L x 1.220" W (36.00mm x 31.00mm)
Height (Max) 1.378" (35.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SCR25B
Other Names 399-SCR25B-150-1R4A024J,UALE21R4A024J0
Standard Package 150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276873-SCR25B-150-1R4A024J
Ultra Librarian 3D Model Ultra Librarian SCR25B-150-1R4A024J CAD Model

Description

The KEMET SCR25B-150-1R4A024J common mode choke is a power line filter with a voltage rating of 500V (AC/DC).

  • Manufacturer:KEMET
  • Voltage Rating (AC/DC): 500V (AC/DC)
  • Current Rating: 15A
  • Inductance: 2.4 mH @ 10 kHz
  • DC Resistance (DCR): 11.5mOhm
  • Height: 1.378" (35.00mm)
  • Mounting Type: Through-Hole
  • Package/Case: Vertical, 4 PC pin
  • Operating Temperature Range: 25°C to 120°C
  • Dimension: 1.417" L x 1.220" W (36.00mm x 31.00mm)
  • Packaging: Tray
