Same model may have multiple batches, images only for reference.

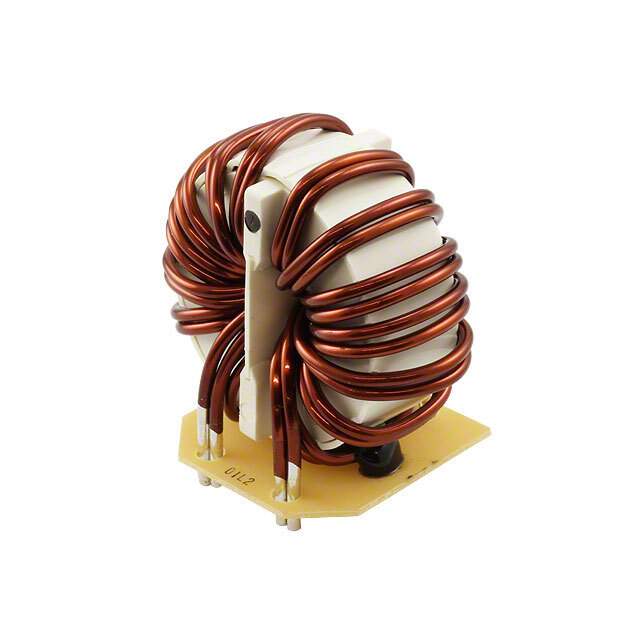

SCR22-050-0R9A100J Real Image
Same model may have multiple batches, images only for reference.

SCR22-050-0R9A100J

Part No SCR22-050-0R9A100J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10 mH @ 10 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 60mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.142" L x 0.906" W (29.00mm x 23.00mm)
Height (Max) 0.945" (24.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SCR22-050
Other Names 399-20202,UALCA0R9A100J0
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276896-SCR22-050-0R9A100J
Ultra Librarian 3D Model Ultra Librarian SCR22-050-0R9A100J CAD Model

Description

The KEMET SCR22-050-0R9A100J common mode choke is a power line filter with a voltage rating of 250V (AC/DC).

  • Manufacturer: KEMET
  • Product Name: SCR22-050-0R9A100J
  • Voltage Rating: 250V (AC/DC)
  • Current Rating: 5A
  • Inductance: 10 mH @ 10 kHz
  • DC Resistance (DCR): 60mOhm
  • Height: 0.945" (24.00mm)
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Operating Temperature Range: -25°C to 120°C
  • Dimension: 1.142" L x 0.906" W (29.00mm x 23.00mm)
  • Packaging: Bulk
