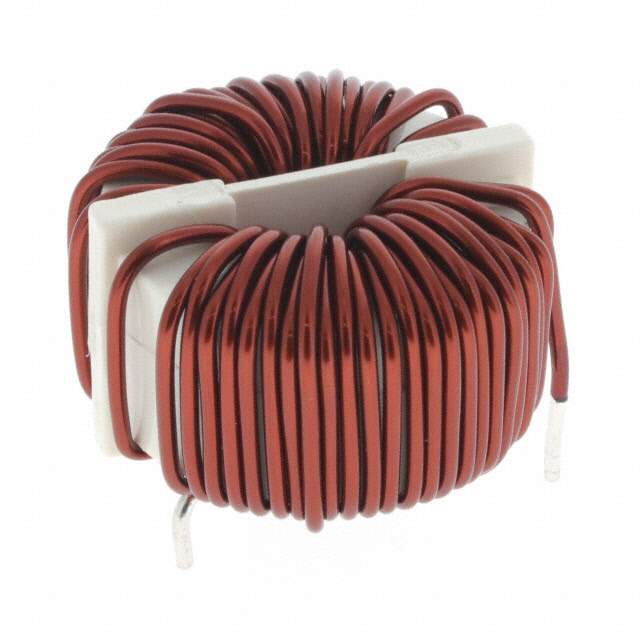

SC-18-290 Real Image
Same model may have multiple batches, images only for reference.

SC-18-290

Part No SC-18-290
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.9 mH @ 100 kHz
Current Rating (Max) 18A
DC Resistance (DCR) (Max) 25mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.575" Dia (40.00mm)
Height (Max) 1.102" (28.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-18
Other Names UALSC182900000,399-SC-18-290
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277057-SC-18-290
Ultra Librarian 3D Model Ultra Librarian SC-18-290 CAD Model

Description

The KEMET SC-18-290 is a common mode choke filter used in power line applications.

  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 18A
  • Height: 1.102 inches (28.00mm)
  • Mounting Type: Through-hole
  • Package: 4 PC pin horizontal, no base
  • Number of Lines: 2
  • Inductance: 2.9mH @ 100kHz frequency
  • DC Resistance (DCR): 25mOhm
  • Temperature Range: -25°C to 120°C
