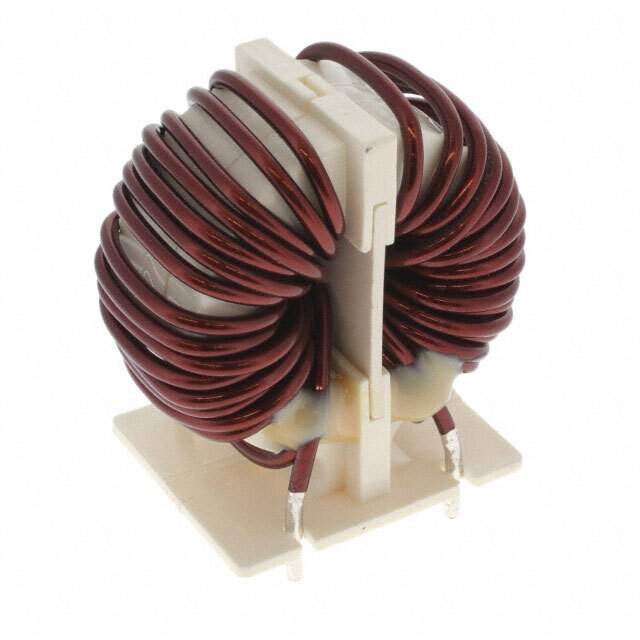

SC-18-05J Real Image
Same model may have multiple batches, images only for reference.

SC-18-05J

Part No SC-18-05J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 500 µH @ 100 kHz
Current Rating (Max) 18A
DC Resistance (DCR) (Max) 7mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.732" L x 1.181" W (44.00mm x 30.00mm)
Height (Max) 1.732" (44.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-18
Other Names 399-SC-18-05J
Standard Package 40
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276952-SC-18-05J
Ultra Librarian 3D Model Ultra Librarian SC-18-05J CAD Model

Description

The KEMET SC-18-05J is a common mode choke filter designed for power line applications.

  • Voltage Rating: 250VAC/250VDC
  • Maximum Current Rating: 18A
  • Height: 44.00mm
  • Package: Tray
  • Mounting Type: Through-hole
  • Number of Lines: 2
  • Inductance: 500 µH @ 100 kHz
  • DC Resistance: 7mOhm
  • Temperature Range: -25°C to 105°C
