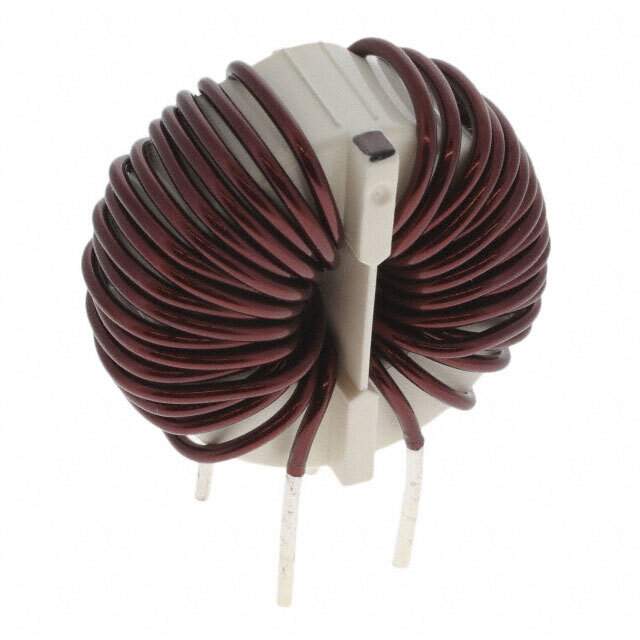

SC-10-340 Real Image
Same model may have multiple batches, images only for reference.

SC-10-340

Part No SC-10-340
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 3.4MH 10A 2LN TH / 3.4 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 10A DCR 32mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.4 mH @ 100 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 32mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.890" Dia (48.00mm)
Height (Max) 1.890" (48.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names UALSC103400000,399-SC-10-340
Standard Package 60
Win Source Part Number 1091894-SC-10-340
Ultra Librarian 3D Model Ultra Librarian SC-10-340 CAD Model

Description

The KEMET SC-10-340 is a high-quality common mode choke that is designed for use in power line filters.

  • Voltage Rating: 250V AC / 250V DC
  • Current Rating: 10A
  • Inductance @ 100 kHz: 3.4 mH
  • DC Resistance (DCR): 32mOhm
  • Height: 1.890" (48.00mm)
  • Diameter: 1.890" (48.00mm)
  • Mounting Type: Through-Hole
  • Package/Case: Vertical, No Base, 4 PC Pin
  • Standard Package: 60
  • Win Source Part Number: 1091894-SC-10-340
