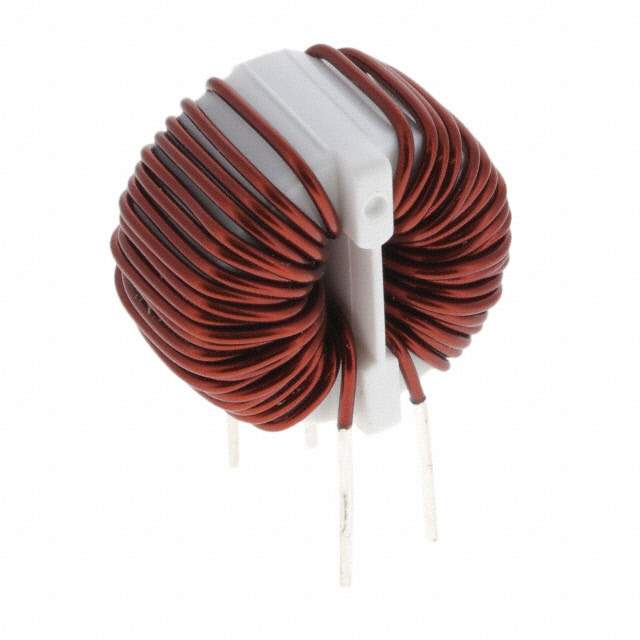

SC-08-200B Real Image
Same model may have multiple batches, images only for reference.

SC-08-200B

Part No SC-08-200B
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 100 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 70mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.339" Dia (34.00mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-08
Other Names 399-SC-08-200B
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277059-SC-08-200B
Ultra Librarian 3D Model Ultra Librarian SC-08-200B CAD Model

Description

The KEMET SC-08-200B is a common mode choke filter that is ideal for use in power line applications.

  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 8A
  • Height: 1.339 inches
  • Diameter: 34.00mm
  • Lines: 2
  • Inductance: 2 mH @ 100 kHz
  • DC Resistance: 70mOhm
  • Mounting: Through Hole
  • Package: Bulk
  • Temperature Range: -25°C to 105°C
