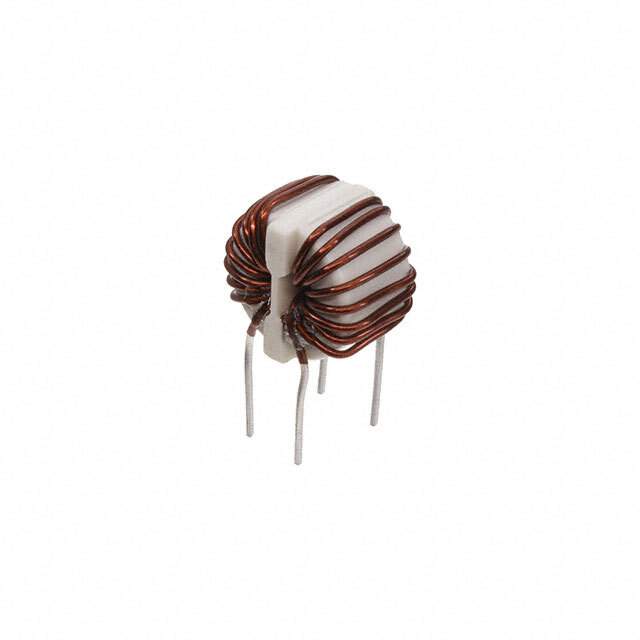

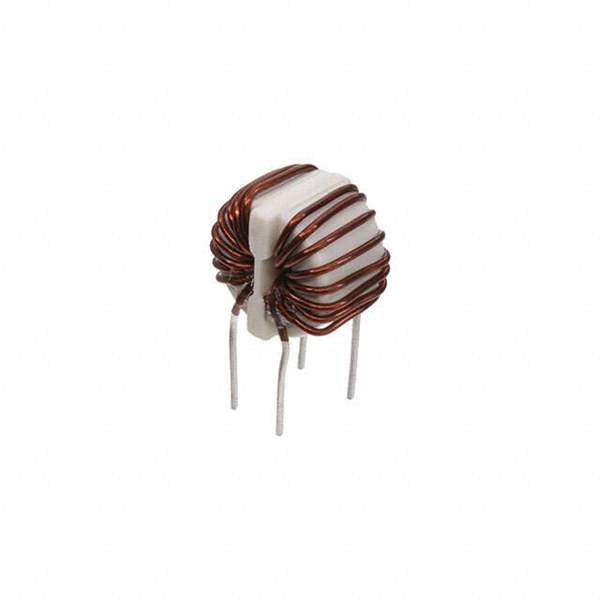

SC-07-100 Real Image
Same model may have multiple batches, images only for reference.

SC-07-100

Part No SC-07-100
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 650 µH @ 100 kHz
Current Rating (Max) 7A
DC Resistance (DCR) (Max) 14mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.984" Dia (25.00mm)
Height (Max) 0.984" (25.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-07
Other Names UALSC071000000,399-SC-07-100
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277031-SC-07-100
Ultra Librarian 3D Model Ultra Librarian SC-07-100 CAD Model

Description

The KEMET SC-07 series common mode choke is a power line filter type component designed to reduce electromagnetic interference (EMI) in electronic circuits. The KEMET SC-07 series common mode choke is a reliable and effective solution for reducing EMI in electronic circuits.

  • Voltage Rating: 250V AC/DC
  • Current Rating: 7A
  • Inductance: 650 µH @ 100 kHz
  • DC Resistance: 14mOhm
  • Package Type: Through-hole
  • Package Configuration: Vertical, no base, 4 PC pin
  • Temperature Range: -25°C to 105°C
