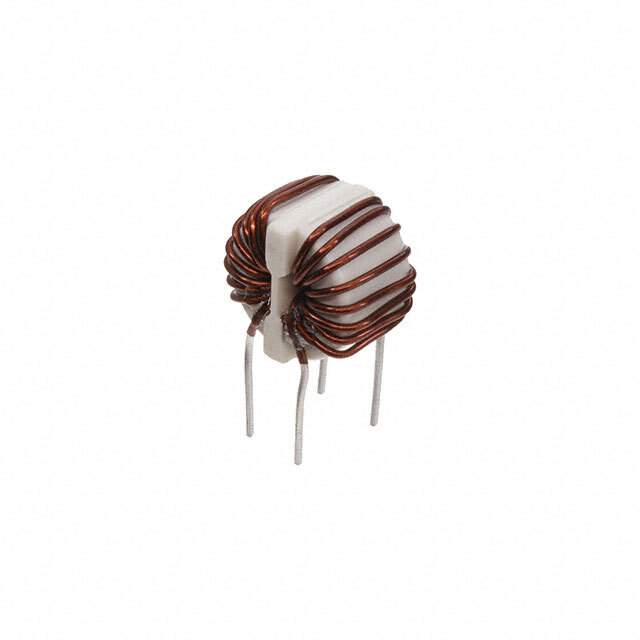

Same model may have multiple batches, images only for reference.

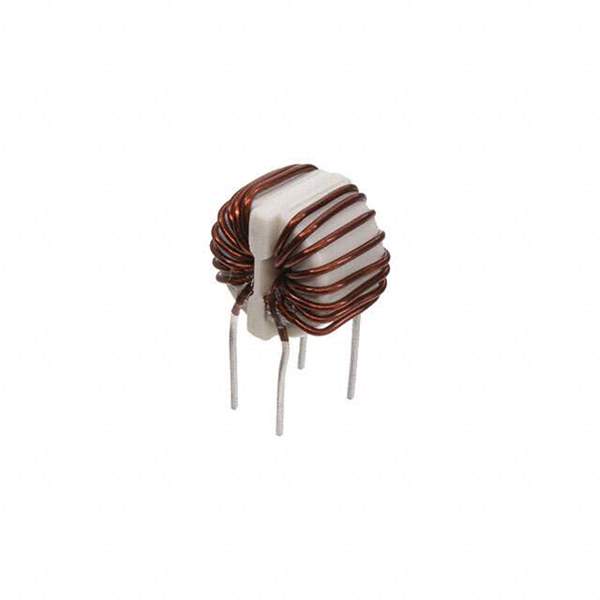

SC-06-900 Real Image
Same model may have multiple batches, images only for reference.

SC-06-900

Part No SC-06-900
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 9 mH @ 1 kHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 60mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.339" Dia (34.00mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-06
Other Names UALSC069000000,399-SC-06-900
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277024-SC-06-900
Ultra Librarian 3D Model Ultra Librarian SC-06-900 CAD Model

Description

The KEMET SC-06-900 is a common mode choke used for power line filtering.

  • Mounting Type: Through-hole
  • Package: Bulk
  • Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 6A
  • Standard Package: 200
  • Height: 1.339 inches
  • Lines: Two
  • Inductance @ Frequency: 9 mH @ 1 kHz
  • DC Resistance: 60mOhm
  • Mounting Type: Vertical, with no base and 4 PC pin
  • Operating Temperature Range: -25°C to 105°C
  • ECCN: EAR99
