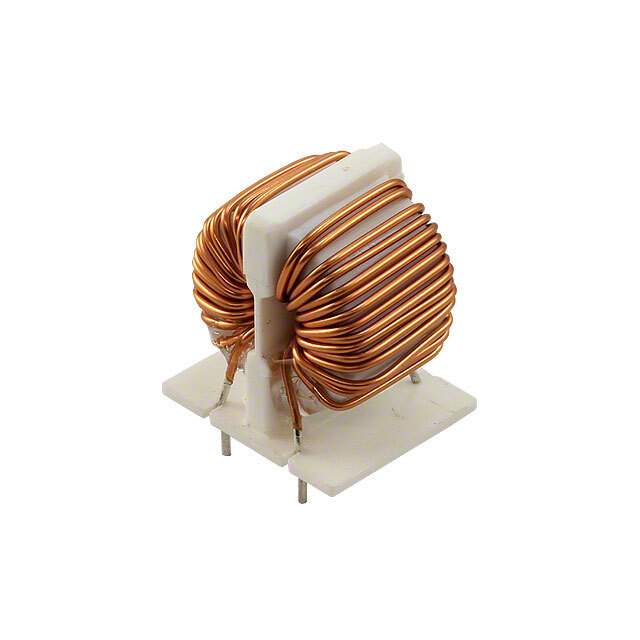

SC-05-10J Real Image
Same model may have multiple batches, images only for reference.

SC-05-10J

Part No SC-05-10J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 50mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-05
Other Names 399-10651,UALSC0510J0000
Standard Package 400
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277085-SC-05-10J
Ultra Librarian 3D Model Ultra Librarian SC-05-10J CAD Model

Description

The KEMET SC-05-10J is a common mode choke filter designed for power lines.

  • Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 5A
  • Height: 1.063 inches (27.00mm)
  • Mounting Type: Through-hole
  • Inductance: 1mH @ 100kHz
  • Package: Bulk
  • Standard Package: 400
  • Temperature Range: -25°C to 120°C
  • ECCN: EAR99
