Same model may have multiple batches, images only for reference.

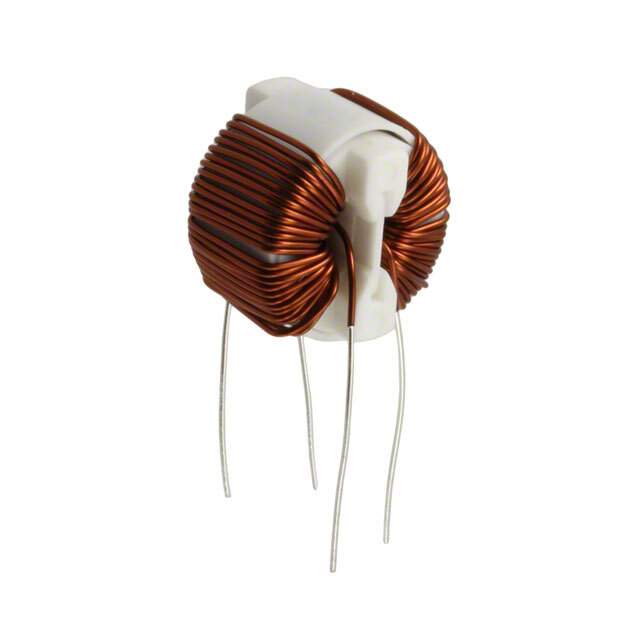

SC-01-30G Real Image
Same model may have multiple batches, images only for reference.

SC-01-30G

Part No SC-01-30G
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 100 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 120mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.689" Dia x 0.551" W (17.50mm x 14.00mm)
Height (Max) 0.689" (17.50mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-01
Other Names 399-10631,UALSC0130G0000
Standard Package 1,300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277054-SC-01-30G
Ultra Librarian 3D Model Ultra Librarian SC-01-30G CAD Model

Description

This KEMET common mode choke is a high-quality component for your electronic projects. The component is also available under other names such as 399-10631 and UALSC0130G0000.

  • Series: SC series
  • Voltage Rating: 250V
  • Current Rating (max): 1A
  • Filter Type: Power Line
  • Lines: 2
  • Inductance: 3 mH @ 100 kHz
  • Package: Vertical, no base, 4 PC pin
  • Mounting: Through-hole mountable
  • Dimensions: 0.689" Dia x 0.551" W (17.50mm x 14.00mm)
  • Operating Temperature Range: -25°C ~ 105°C
  • ECCN: EAR99
  • Category: Filter common mode choke
