Same model may have multiple batches, images only for reference.

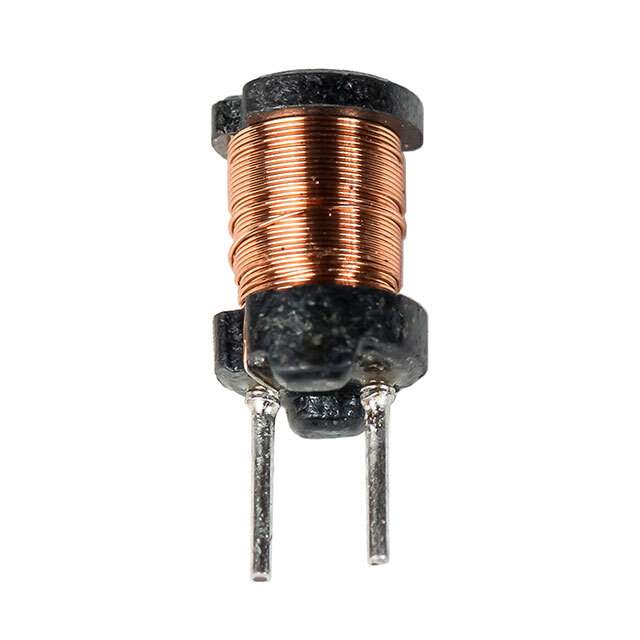

SBCP-14HY3R3B Real Image
Same model may have multiple batches, images only for reference.

SBCP-14HY3R3B

Part No SBCP-14HY3R3B
Manufacturer Kemet
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr KEMET
Series SBCP
Package Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±30%
Current Rating (Amps) 4.1 A
Current - Saturation (Isat) 18.2A
Shielding Unshielded
DC Resistance (DCR) 20mOhm Max
Temperature Range - Operating -20°C ~ 105°C
Inductance Frequency - Test 10 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.591" (15.00mm)
Base Product Number SBCP-14HY
Other Names UPIO14HY3R3B00,399-20021
Standard Package 1,500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272808-SBCP-14HY3R3B
Ultra Librarian 3D Model Ultra Librarian SBCP-14HY3R3B CAD Model

Description

The SBCP series of inductors from KEMET are drum core, wirewound inductors, with an unshielded design.

  • Manufacturer: KEMET
  • Type: drum core, wirewound
  • Design: unshielded
  • Core Material: ferrite
  • Inductance: 3.3 µH
  • Tolerance: ±30%
  • DC Resistance: 20 mOhm max
  • Current Rating: 4.1 A
  • Height: 0.591 inches (15.00mm)
  • Mounting: through hole
  • Package Type: radial, vertical cylinder (open)
  • Operating Temperature: -20°C to 105°C
