Same model may have multiple batches, images only for reference.

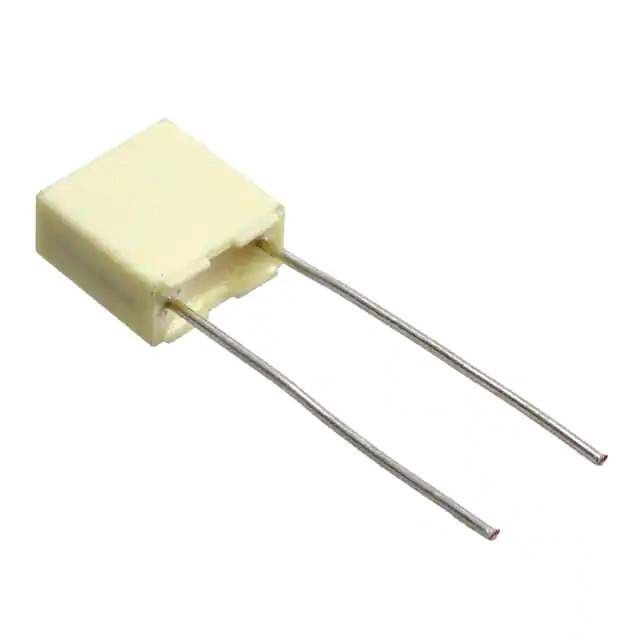

R82EC2470SH60J Real Image
Same model may have multiple batches, images only for reference.

R82EC2470SH60J

Part No R82EC2470SH60J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.047UF 5% 100VDC RAD / 0.047 μF Film Capacitor 63V 100V Polyester, Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series R82
Package Cut Tape (CT)Tape & Box (TB)
Product Status Active
Capacitance 0.047 µF
Tolerance ±5%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.283" L x 0.098" W (7.20mm x 2.50mm)
Height - Seated (Max) 0.260" (6.60mm)
Termination PC Pins
Lead Spacing 0.197" (5.00mm)
Applications Automotive
Ratings AEC-Q200
Base Product Number R82EC
Standard Package 3,500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 931467-R82EC2470SH60J
Ultra Librarian 3D Model Ultra Librarian R82EC2470SH60J CAD Model

Description

The 931467-R82EC2470SH60J is a film capacitor from the R82 series.

  • Application: automotive applications
  • Capacitance: 0.047 µF
  • Voltage Rating: 63VAC/100VDC
  • Size: 0.283" L x 0.098" W (7.20mm x 2.50mm)
  • Height: 0.260" (6.60mm)
  • Mounting: through-hole mounting
  • Material: polyester and metallized dielectric
  • Package: radial package
  • Tolerance: ±5%
