Same model may have multiple batches, images only for reference.

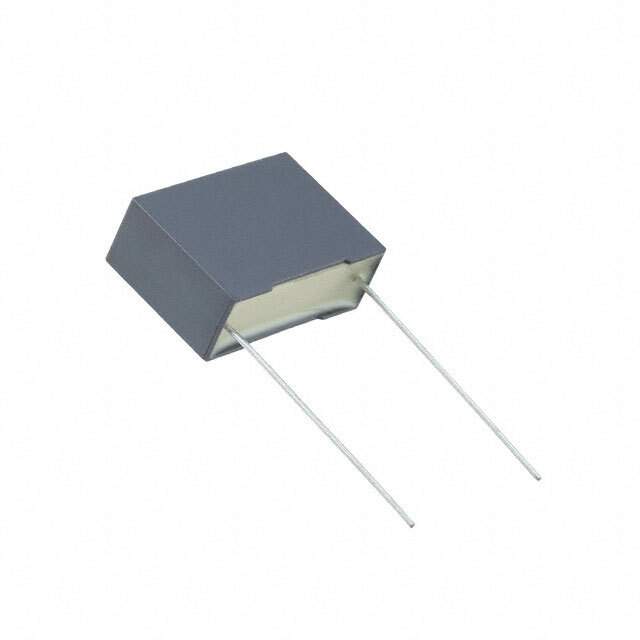

R71PN36804030K Real Image
Same model may have multiple batches, images only for reference.

R71PN36804030K

Part No R71PN36804030K
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.68UF 10% 630VDC RAD / 0.68 µF Film Capacitor 275V 630V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series R71
Package Bulk
Capacitance 0.68 µF
Tolerance ±10%
Voltage Rating - AC 275V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.043" L x 0.394" W (26.50mm x 10.00mm)
Height - Seated (Max) 0.732" (18.60mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC)
Base Product Number R71PN
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 399-12745,71PN36804030K
Standard Package 300
Win Source Part Number 998725-R71PN36804030K
Ultra Librarian 3D Model Ultra Librarian R71PN36804030K CAD Model

Description

The KEMET R71 series is known for its film capacitors. The 998725-R71PN36804030K capacitor is a part of this series and comes in a radial package.

  • Capacitance: 0.68 μF
  • Voltage Rating: 630V
  • Tolerance: ±10%
  • Standard Package: 300
  • Suitability: High frequency, switching; high pulse, DV/DT; power factor correction (PFC) applications
