Same model may have multiple batches, images only for reference.

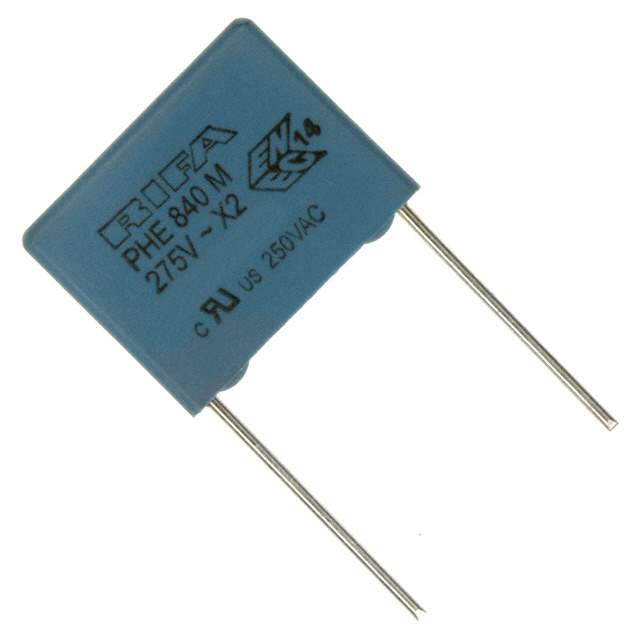

PHE840MX6220MB06R17 Real Image
Same model may have multiple batches, images only for reference.

PHE840MX6220MB06R17

Part No PHE840MX6220MB06R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.22UF 20% 760VDC RAD
Datasheet
PHE840MX6220MB06R17 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.22μF
Tolerance ±20%
Voltage Rating - AC 275V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 0.709" L x 0.295" W (18.00mm x 7.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 1087809-PHE840MX6220MB06R17
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE840MX6220MB06R17 CAD Model

Description

The Kemet 1087809-PHE840MX6220MB06R17 is a through hole capacitor with a capacitance of 0.22μF and a voltage rating of 275V AC and 760V DC.

  • Capacitance: 0.22μF
  • Voltage Rating: 275V AC, 760V DC
  • Tolerance: ±20%
  • Lead Spacing: 0.591" (15.00mm)
  • Safety Rating: X2
  • Dielectric Material: Polypropylene (PP), Metallized
  • Applications: EMI and RFI Suppression
  • Height: 0.571" (14.50mm)
  • Dimensions: 0.709" L x 0.295" W (18.00mm x 7.50mm)
  • Supply and Demand Status: Balanced
