Same model may have multiple batches, images only for reference.

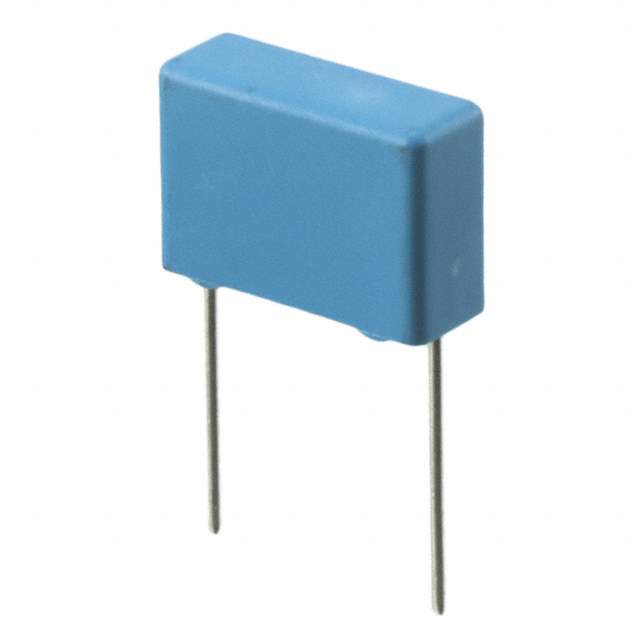

PHE840MB6120MB10R17 Real Image
Same model may have multiple batches, images only for reference.

PHE840MB6120MB10R17

Part No PHE840MB6120MB10R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.12UF 20% 760VDC RAD
Datasheet
PHE840MB6120MB10R17 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.12μF
Tolerance ±20%
Voltage Rating - AC 275V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 0.709" L x 0.256" W (18.00mm x 6.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 209912-PHE840MB6120MB10R17
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PHE840MB6120MB10R17 CAD Model

Description

The Kemet 209912-PHE840MB6120MB10R17 is a through hole capacitor that is recommended for EMI and RFI suppression applications.

  • Dielectric Material: polypropylene (PP), metallized capacitor
  • Capacitance: 0.12μF
  • Tolerance: ±20%
  • Win Source Part Number: 209912-PHE840MB6120MB10R17
  • Recommendation: recommended to use this component in applications that require limited supply.
