Same model may have multiple batches, images only for reference.

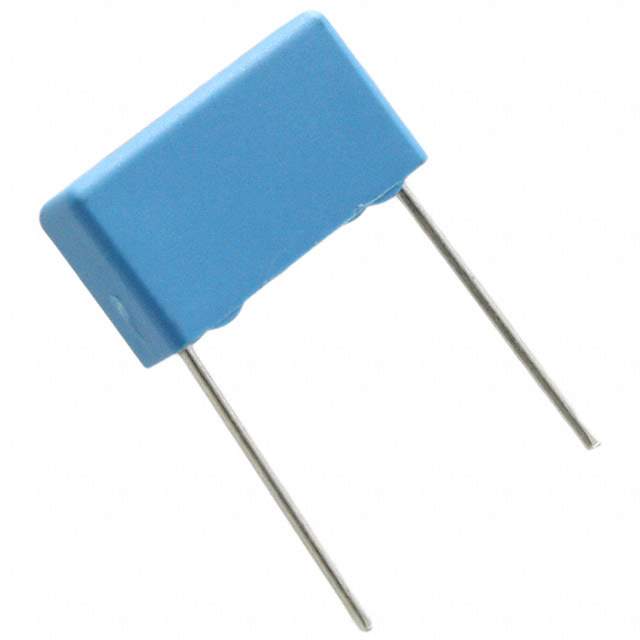

PHE840MB5470KB04R17 Real Image
Same model may have multiple batches, images only for reference.

PHE840MB5470KB04R17

Part No PHE840MB5470KB04R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.047UF 10% 760VDC RAD
Datasheet
PHE840MB5470KB04R17 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.047μF
Tolerance ±10%
Voltage Rating - AC 275V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 0.709" L x 0.217" W (18.00mm x 5.50mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 209910-PHE840MB5470KB04R17
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE840MB5470KB04R17 CAD Model

Description

The Kemet PHE840MB5470KB04R17 is a high-quality X2 safety-rated capacitor that is designed for use in EMI and RFI suppression applications.

  • Capacitance: 0.047μF
  • Voltage Rating: 275V AC and 760V DC
  • Mounting: a through-hole component
  • Lead Spacing: 0.591" (15.00mm)
  • Height (Seated Max): 0.413" (10.50mm)
  • Dielectric Material: polypropylene (PP) and metallized dielectric material
  • Tolerance: ±10%
  • Supply and Demand: balance, which means it is relatively easy to obtain
  • Quality: a high-quality capacitor that is designed for use in a wide range of electronic applications.
