Same model may have multiple batches, images only for reference.

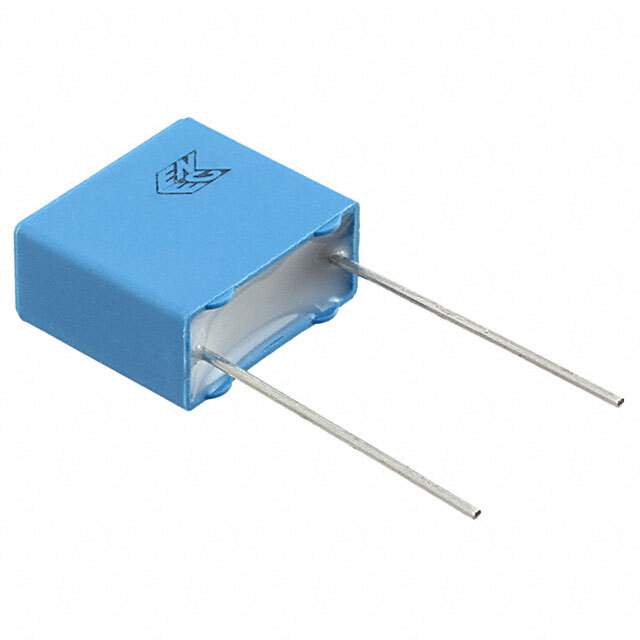

PHE840MA6100KA04R17 Real Image
Same model may have multiple batches, images only for reference.

PHE840MA6100KA04R17

Part No PHE840MA6100KA04R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.1UF 10% 760VDC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.1μF
Tolerance ±10%
Voltage Rating - AC 275V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 0.512" L x 0.236" W (13.00mm x 6.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 209909-PHE840MA6100KA04R17
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE840MA6100KA04R17 CAD Model

Description

The PHE840MA6100KA04R17 is a 0.1μF capacitor manufactured by Kemet.

  • Capacitance: 0.1μF
  • Safety Rating: X2 safety rated
  • Voltage Rating: 275V AC and 760V DC
  • Application: used for EMI and RFI suppression
  • Mounting: mounted through hole
  • Tolerance: ±10%
  • Dielectric Material: polypropylene (PP), metallized
  • Dimension: 0.512" L x 0.236" W (13.00mm x 6.00mm)
  • Height (Seated): 0.472" (12.00mm) when seated
  • Operating Temperature: operate in a temperature range of -55°C to 105°C
  • Supply and Demand: balanced
