Same model may have multiple batches, images only for reference.

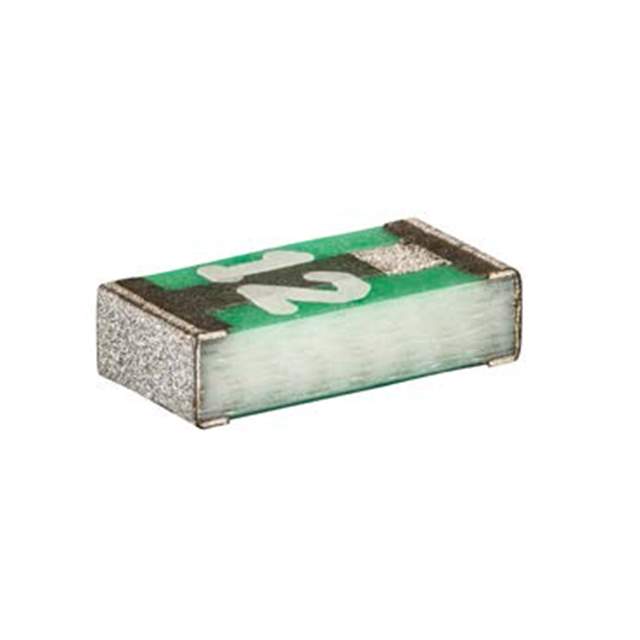

3413.0329.22 Real Image
Same model may have multiple batches, images only for reference.

3413.0329.22

Part No 3413.0329.22
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 12A 32VAC 63VDC
Datasheet
3413.0329.22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Series UST 1206
Packaging Reel package
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 12A
Voltage Rating - AC 32V
Voltage Rating - DC 63V
Response Time Slow
Package 1206 (3216 Metric)
Mounting SMD
Breaking Capacity @ Rated Voltage 100A
Melting I2t 33
Approvals cURus
Operating Temperature Range -55°C ~ 90°C
Dimension 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm)
Resistance 0.0043 Ohm
Win Source Part Number 763343-3413.0329.22
Popularity Medium
Supply and Demand Status Limited
Family Name 3413
Introduction Date July 15, 2008
ECCN EAR99
Country of Origin Switzerland
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian 3413.0329.22 CAD Model

Description

The Schurter Inc. UST 1206 series presents the 763343-3413.0329.22 fuse.

  • Type: Board Mount
  • Current Rating: 12A
  • Voltage Rating (AC): 32VAC
  • Voltage Rating (DC): 63VDC
  • Approvals: cURus
  • Resistance: 0.0043 Ohm
  • Package: 1206 (3216 Metric)
  • Response Time: Slow
  • Breaking Capacity: 100A @ Rated Voltage
  • Dimension: 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm)
  • Mounting: SMD
  • Estimated EOL Date: 2024
