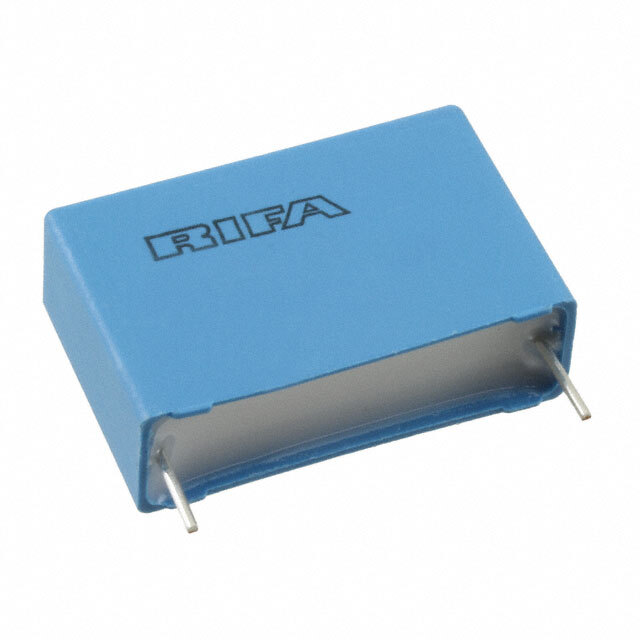

Same model may have multiple batches, images only for reference.
PHE820EF7100MR06L2 Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PHE820EF7100MR06L2

Part No PHE820EF7100MR06L2
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1UF 20% 300VAC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Capacitance 1 µF
Tolerance ±20%
Voltage Rating - AC 300V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Through Hole
Case / Package Radial
Size / Dimension 1.240" L x 0.689" W (31.50mm x 17.50mm)
Height - Seated (Max) 1.102" (28.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications EMI, RFI Suppression
Ratings X2
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1521564-PHE820EF7100MR06L2
Ultra Librarian 3D Model Ultra Librarian PHE820EF7100MR06L2 CAD Model
