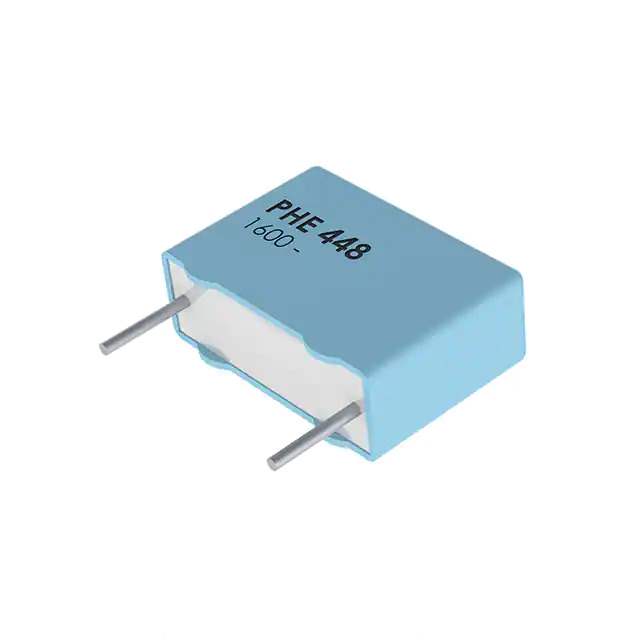

PHE448SB3270JR06 Real Image
Same model may have multiple batches, images only for reference.

PHE448SB3270JR06

Part No PHE448SB3270JR06
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 270PF 5% 2KVDC RADIAL
Datasheet
PHE448SB3270JR06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series PHE448
Package Box
Product Status Active
Capacitance 270 pF
Tolerance ±5%
Voltage Rating - AC 700V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP)
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.709" L x 0.217" W (18.00mm x 5.50mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Frequency, Switching; High Pulse, DV/DT
Base Product Number PHE448
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0030
Win Source Part Number 273967-PHE448SB3270JR06
Ultra Librarian 3D Model Ultra Librarian PHE448SB3270JR06 CAD Model

Description

The PHE448SB3270JR06 is a polypropylene film capacitor from KEMET.

  • Series: PHE448
  • Capacitance: 270 pF
  • Tolerance: ±5%
  • Voltage Rating (AC): 700V
  • Voltage Rating (DC): 2000V
  • Size: 0.709" L x 0.217" W (18.00mm x 5.50mm)
  • Seated Height: 0.413" (10.50mm)
  • Application: High-Frequency and Switching Applications, High Pulse and DV/DT Applications
  • Package: Box
  • Standard Package: 1,000 pieces
  • Operating Temperature Range: -55°C to 105°C
