Same model may have multiple batches, images only for reference.

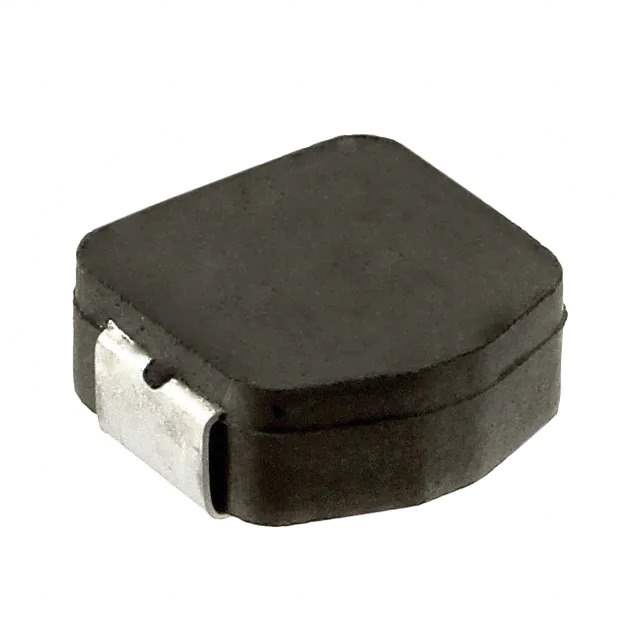

MPLCG0630L1R5 Real Image
Same model may have multiple batches, images only for reference.

MPLCG0630L1R5

Part No MPLCG0630L1R5
Manufacturer Kemet
Catalog Fixed Inductors
Description FIXED IND 1.5UH 9.9A 15 MOHM SMD
Datasheet
MPLCG0630L1R5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr KEMET
Series MPLCG
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 9.9 A
Current - Saturation (Isat) 8.3A
Shielding Shielded
DC Resistance (DCR) 15mOhm Max
Temperature Range - Operating -20°C ~ 120°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.295" L x 0.264" W (7.50mm x 6.70mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number MPLCG0630
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 643845-MPLCG0630L1R5
Ultra Librarian 3D Model Ultra Librarian MPLCG0630L1R5 CAD Model

Description

The MPLCG0630L1R5 is a drum core, wirewound inductor from KEMET.

  • Type: Drum Core, Wirewound
  • Mounting Type: Surface Mount
  • Size: 0.295" L x 0.264" W (7.50mm x 6.70mm)
  • Height: 0.118" (3.00mm)
  • Inductance: 1.5 µH
  • Inductance Tolerance: ±20%
  • DC Resistance (DCR): 15mOhm max
  • Current Rating: 9.9 A
  • Temperature Range: -20°C to 120°C
