Same model may have multiple batches, images only for reference.

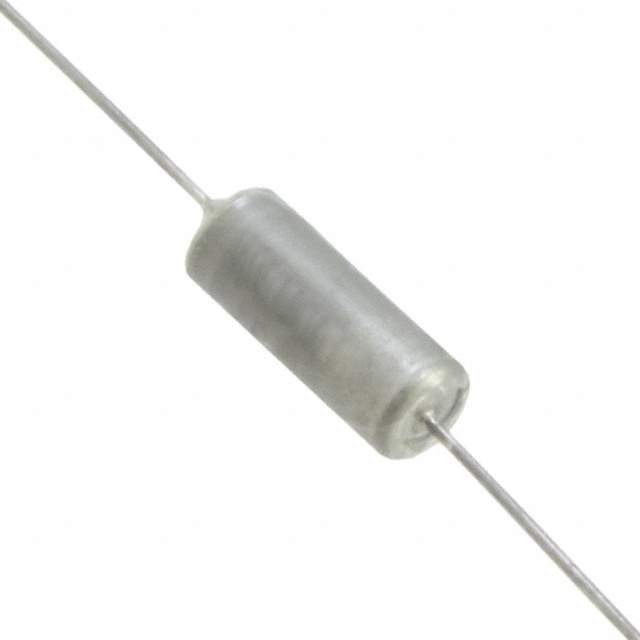

M39003/01-2286 Real Image
Same model may have multiple batches, images only for reference.

M39003/01-2286

Part No M39003/01-2286
Manufacturer Kemet
Catalog Tantalum Capacitors
Description CAP TANT 10UF 10% 20V AXIAL / 10 µF Hermetically Sealed Tantalum Capacitors 20 V Axial 2.9Ohm
Datasheet
M39003/01-2286 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Kemet
Series Military, MIL-PRF-39003/1, CSR13
Package Bulk
Capacitance 10 µF
Tolerance ±10%
Voltage - Rated 20 V
Type Hermetically Sealed
ESR (Equivalent Series Resistance) 2.9Ohm
Temperature Range - Operating -55°C ~ 125°C
Lifetime @ Temp. -
Mounting Type Through Hole
Package / Case Axial
Size / Dimension 0.185" Dia x 0.610" L (4.70mm x 15.49mm)
Height - Seated (Max) -
Lead Spacing -
Manufacturer Size Code B
Features High Reliability
Failure Rate M (1%)
Base Product Number M39003/01
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0020
California Prop 65 Warning Information
Standard Package 75 pcs
Win Source Part Number 1383571-M39003/01-2286
Ultra Librarian 3D Model Ultra Librarian M39003/01-2286 CAD Model

Description

The M39003/01-2286 is a tantalum capacitor from the military-grade CSR13 series.

  • Description: Hermetically sealed and offers high reliability
  • Capacitance: 10μF
  • Tolerance: ±10%
  • Rated Voltage: 20V
  • Package: Bulk
  • Size/Dimension: 0.185" Dia x 0.610" L (4.70mm x 15.49mm)
  • Mounting Type: Through-Hole
  • Operating Temperature: -55°C to 125°C
  • ECCN: EAR99
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
