Same model may have multiple batches, images only for reference.

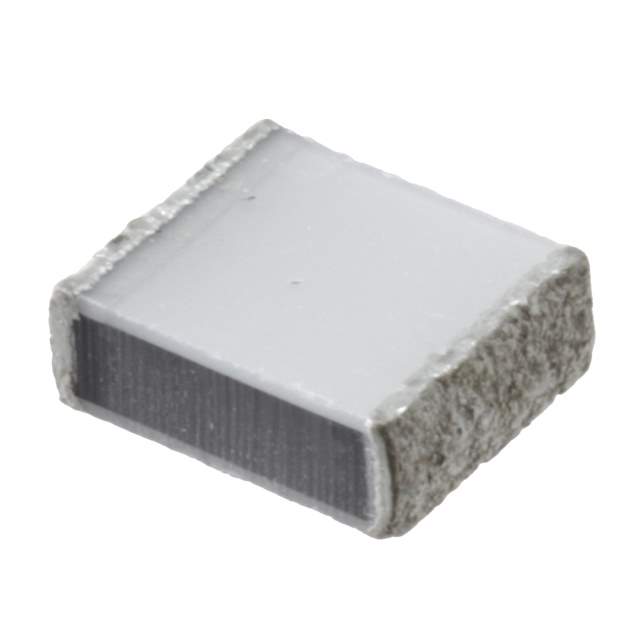

LDEMD2220JA5N00 Real Image
Same model may have multiple batches, images only for reference.

LDEMD2220JA5N00

Part No LDEMD2220JA5N00
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.022UF 5% 400VDC 2220 / 0.022 µF Film Capacitor 160V 400V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 2220 (5750 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series LDE
Package Tape & Reel
Capacitance 0.022 µF
Tolerance ±5%
Voltage Rating - AC 160V
Voltage Rating - DC 400V
Dielectric Material Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 2220 (5750 Metric)
Dimension 0.236" L x 0.197" W (6.00mm x 5.00mm)
Height - Seated (Max) 0.098" (2.50mm)
Termination Solder Pads
Applications Automotive
Ratings AEC-Q200
Features High Temperature
Base Product Number LDEMD
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 399-6434-6,399-6434-1,399-6434-2,DEMD2220JA5N00
Standard Package 3,000
Win Source Part Number 1116202-LDEMD2220JA5N00
Ultra Librarian 3D Model Ultra Librarian LDEMD2220JA5N00 CAD Model

Description

The KEMET LDEMD2220JA5N00 is a film capacitor that is designed for automotive applications. KEMET manufactures the LDEMD2220JA5N00.

  • Capacitance: 0.022 µF
  • Tolerance: ±5%
  • Voltage Rating AC: 160V
  • Voltage Rating DC: 400V
  • Package Type: Tape & Reel
  • Standard Package: 3,000
  • Dielectric Material: Polyester, Polyethylene Naphthalate (PEN), Metallized-Stacked
  • Temperature Range: -55°C ~ 125°C
  • AEC-Q200: Yes
  • Mounting: SMD (SMT)
