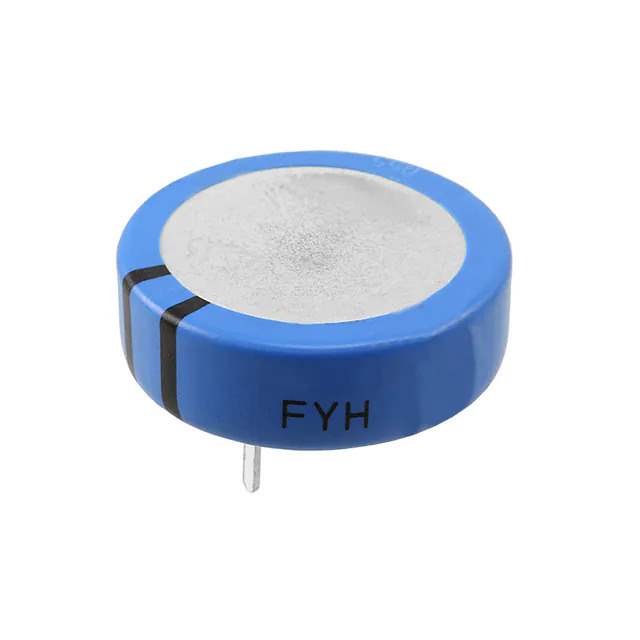

FYH0H105ZF Real Image
Same model may have multiple batches, images only for reference.

FYH0H105ZF

Part No FYH0H105ZF
Manufacturer Kemet
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 1F -20% +80% 5.5V T/H / 1 F (EDLC) Supercapacitor 5.5 V Radial, Can 20Ohm @ 1kHz
Datasheet
FYH0H105ZF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KEMET
Series FYH
Package Bulk
Product Status Active
Capacitance 1 F
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 20Ohm @ 1kHz
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.400" (10.16mm)
Size / Dimension 1.122" Dia (28.50mm)
Height - Seated (Max) 0.433" (11.00mm)
Temperature Range - Operating -25°C ~ 70°C
Base Product Number FYH0H
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 872480-FYH0H105ZF
Ultra Librarian 3D Model Ultra Librarian FYH0H105ZF CAD Model

Description

The FYH series electric double layer capacitor is a high-performance component designed for applications that require high energy storage and quick discharge.

  • Capacitance: 1 F
  • Rated Voltage: 5.5 V
  • ESR (Equivalent Series Resistance): 20 Ohm @ 1kHz
  • Mounting Type: through-hole mountable
  • Temperature Range: -25°C to 70°C
  • Suitable for: backup power supplies, energy harvesting systems, and peak power assist devices
