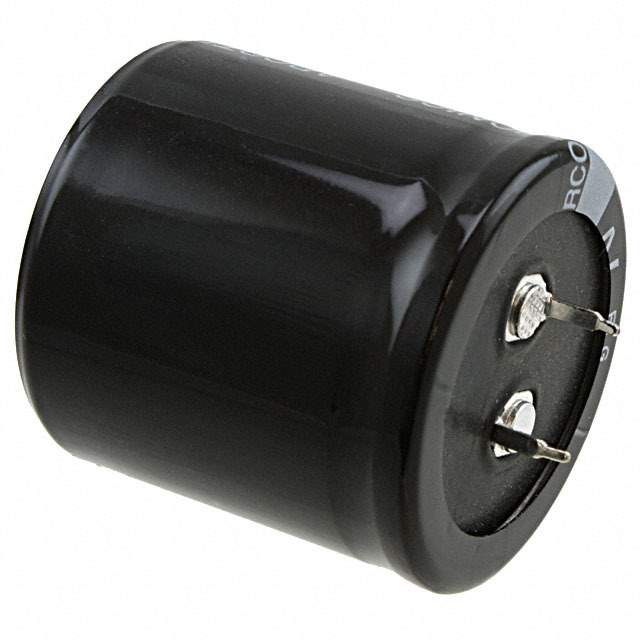

Same model may have multiple batches, images only for reference.

ELG108M200AT3AA

Name: ELG108M200AT3AA
Brand: Kemet
SKU: 1338658
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ELG108M200AT3AA
Manufacturer	Kemet
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 200V SNAP / 1000 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 90mOhm @ 20kHz 2000 Hrs @ 105°C
Datasheet	ELG108M200AT3AA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	KEMET
Series	ELG
Package	Bulk
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	200 V
ESR (Equivalent Series Resistance)	90mOhm @ 20kHz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.3 A @ 120 Hz
Ripple Current @ High Frequency	3.45 A @ 10 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Base Product Number	ELG108M
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1338658-ELG108M200AT3AA
Ultra Librarian 3D Model	Ultra Librarian ELG108M200AT3AA CAD Model

Description

The Kemet ELG series capacitor is an aluminum electrolytic capacitor.

Capacitance: 1000μF
Rated Voltage: 200V
Tolerance: ±20%
ESR: 90mOhm @ 20kHz
Mounting Type: Through-Hole
Package/Case: Radial, Can - Snap-In
Operating Temperature: -25°C to 105°C
Lifetime: 2000 hours @ 105°C
Standard Package: 200
REACH: Unaffected
