Same model may have multiple batches, images only for reference.

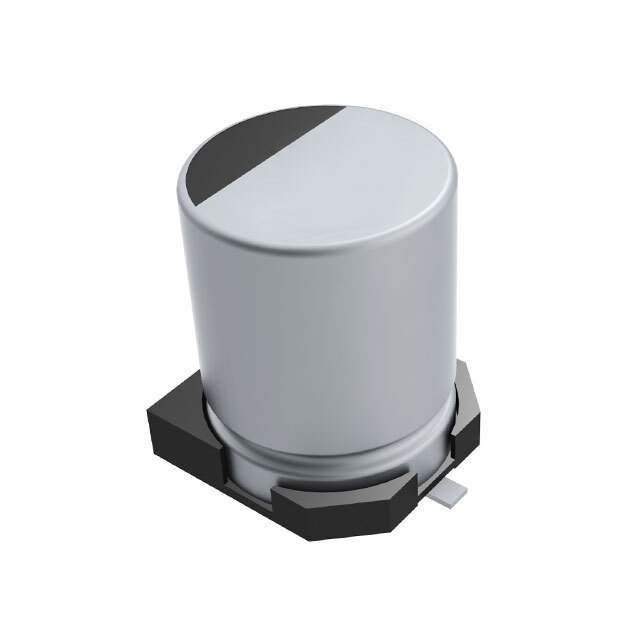

EDK227M016A9HAA Real Image
Same model may have multiple batches, images only for reference.

EDK227M016A9HAA

Part No EDK227M016A9HAA
Manufacturer Kemet
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 16V SMD / 220 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr KEMET
Series EDK
Package Tape & Reel
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 162 mA @ 120 Hz
Ripple Current @ High Frequency 202.5 mA @ 10 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.307" W (6.60mm x 7.80mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EDK227M
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 399-6679-1,399-6679-2,DK227M016A9HAAKPLP,399-6679-6
Standard Package 1,000
Win Source Part Number 1018008-EDK227M016A9HAA
Ultra Librarian 3D Model Ultra Librarian EDK227M016A9HAA CAD Model

Description

The Kemet EDK series capacitor is an aluminum electrolytic capacitor designed for general purpose applications.

  • Manufacturer: Kemet
  • Product Name: EDK series
  • Type: Aluminum Electrolytic Capacitor
  • Application: General Purpose
  • Capacitance: 220 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • ESR: Not Specified
  • Package: Tape & Reel
  • Mounting Type: SMD (SMT)
  • Surface Mount Land Size: 0.260" L x 0.307" W (6.60mm x 7.80mm)
  • Temperature Range: -40°C ~ 85°C
  • Height - Seated (Max): 0.315" (8.00mm)
  • Dimension: 0.248" Dia (6.30mm)
  • Lifetime: 2000 Hrs @ 85°C
  • Polarization: Polarized
  • Package / Case: Radial, Can - SMD
  • Ripple Current (Low Frequency): 162 mA @ 120 Hz
  • Ripple Current (High Frequency): 202.5 mA @ 10 kHz
