Same model may have multiple batches, images only for reference.

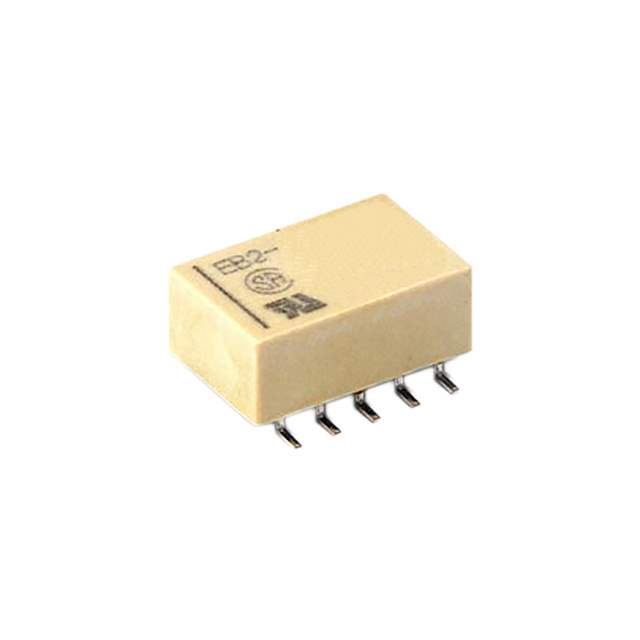

EB2-12NU Real Image
Same model may have multiple batches, images only for reference.

EB2-12NU

Part No EB2-12NU
Manufacturer Kemet
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 1A 12VDC / Electronic switching systems
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Kemet
Packaging Tube
Mounting Style SMD
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 11.7mA
Coil Type Non Latching
Termination Style Gull Wing
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 2ms
Release Time 1ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Gold Alloy
Relay Type General Purpose
Coil Resistance 1.03 kOhms
Manufacturer Pack Quantity 3,600
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812576-EB2-12NU
Ultra Librarian 3D Model Ultra Librarian EB2-12NU CAD Model

Description

The Kemet EB2-12NU is a general purpose non-latching relay with a DPDT (2 Form C) contact form.

  • Coil Voltage: 12VDC
  • Coil Resistance: 1.03 kOhms
  • Switching Voltage: 250VAC, 220VDC - Max
  • Contact Rating (Current): 1A
  • Operate Time: 2ms
  • Package: Tube
  • Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99
