Same model may have multiple batches, images only for reference.

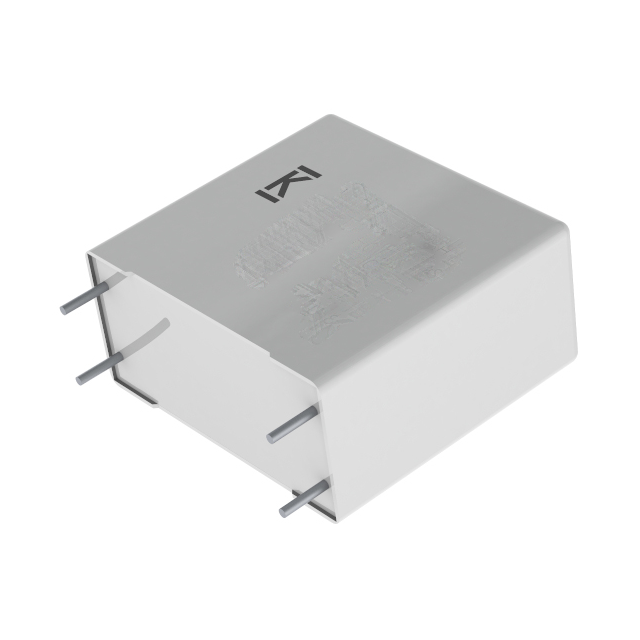

C4AQCLW5200A36J Real Image
Same model may have multiple batches, images only for reference.

C4AQCLW5200A36J

Part No C4AQCLW5200A36J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 20UF 5% 650VDC RADIAL / 20 µF Film Capacitor 650V Polypropylene (PP), Metallized Radial - 4 Leads
Datasheet
C4AQCLW5200A36J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series C4AQ
Package Bulk
Capacitance 20 µF
Tolerance ±5%
Voltage Rating - DC 650V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 5.3 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Dimension 1.654" L x 1.378" W (42.00mm x 35.00mm)
Height - Seated (Max) 0.953" (24.20mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications Automotive; DC Link, DC Filtering
Ratings AEC-Q200
Base Product Number C4AQCL
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names 399-C4AQCLW5200A36J
Standard Package 60
Win Source Part Number 1042152-C4AQCLW5200A36J
Ultra Librarian 3D Model Ultra Librarian C4AQCLW5200A36J CAD Model

Description

The KEMET C4AQCLW5200A36J is a film capacitor with a capacitance of 20 µF and a tolerance of ±5%.

  • Voltage Rating: 650V DC
  • Application: automotive applications such as DC link and DC filtering
  • Mounting Type: through-hole
  • Package/Case: radial-4 leads
  • ESR (Equivalent Series Resistance): 5.3 mOhms
  • Dielectric Material: polypropylene (PP) metallized
  • Standard Package: 60
  • AEC-Q200: Yes
  • Height: 0.953" (24.20mm)
  • Lead Spacing: 1.476" (37.50mm)
  • Temperature Range: -55°C ~ 105°C
  • REACH Compliant: Yes
