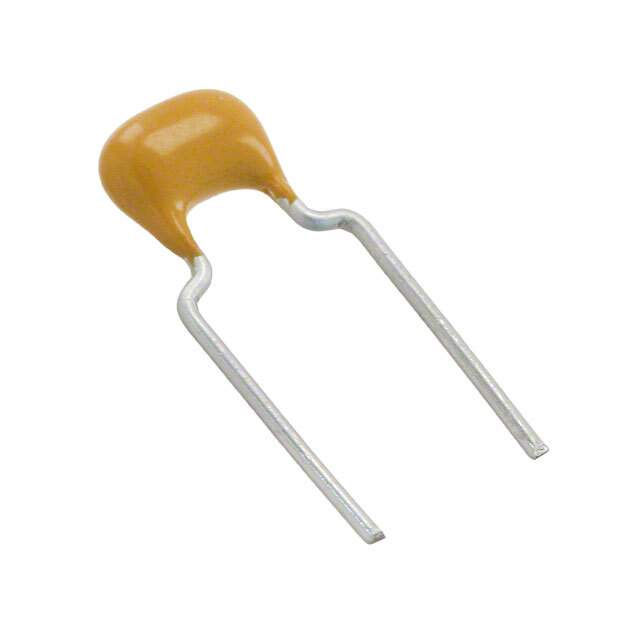

C330C183KGR5TA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series Goldmax, 300
Packaging Bulk
Capacitance 0.018μF
Tolerance ±10%
Voltage Rating DC 2000V (2kV)
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Features High Voltage
Applications General
Mounting Style Through Hole
Package Radial
Dimension 0.300" L x 0.200" W (7.62mm x 5.08mm)
Height - Seated (Maximum) 0.360" (9.14mm)
Lead Spacing 0.200" (5.08mm)
Lead Style Formed Leads
Win Source Part Number 763096-C330C183KGR5TA
Popularity Medium
Supply and Demand Status Limited
Family Name C330
Introduction Date November 11, 2016
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2034
Ultra Librarian 3D Model Ultra Librarian C330C183KGR5TA CAD Model

Description

The Kemet 763096-C330C183KGR5TA is a radial through-hole capacitor with a capacitance of 0.018μF and a voltage rating DC of 2000V (2kV).

  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Lead Spacing: 0.200" (5.08mm)
  • Lead Style: Formed Leads
  • Operating Temperature Range: -55°C to 125°C
  • Applications: General, High Voltage
