Same model may have multiple batches, images only for reference.

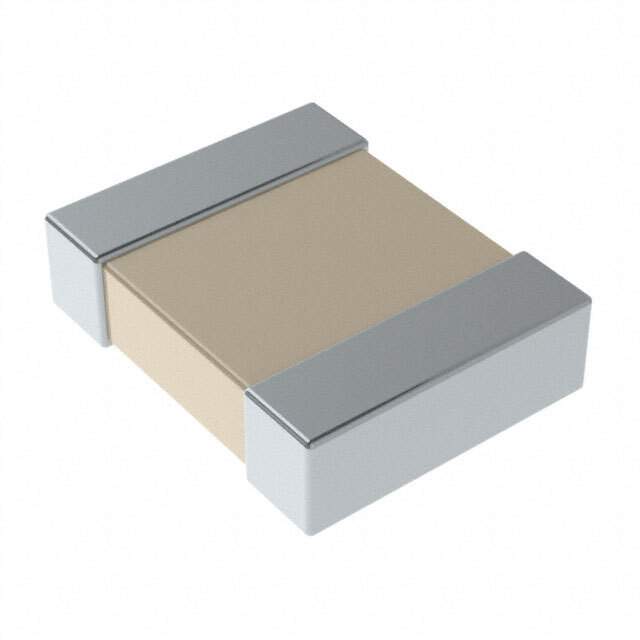

C1210V823KBRAC7800 Real Image
Same model may have multiple batches, images only for reference.

C1210V823KBRAC7800

Part No C1210V823KBRAC7800
Manufacturer Kemet
Catalog Ceramic Capacitors
Datasheet
C1210V823KBRAC7800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KEMET
Series ArcShield SMD Comm X7R HV
Package Tape & Reel
Capacitance 0.082 µF
Tolerance ±10%
Voltage - Rated 630V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage, ArcShield™
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1210 (3225 Metric)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Thickness (Max) 0.091" (2.30mm)
Base Product Number C1210V
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1314895-C1210V823KBRAC7800
Ultra Librarian 3D Model Ultra Librarian C1210V823KBRAC7800 CAD Model

Description

The KEMET ArcShield SMD Comm X7R HV series capacitor is a ceramic capacitor designed for general-purpose applications.

  • Application: General-purpose
  • Series: ArcShield SMD Comm X7R HV
  • Manufacturer: KEMET
  • Capacitance: 0.082 µF
  • Voltage Rating: 630V
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Package/Case: 1210 (3225 Metric)
  • Temperature Range: -55°C to 125°C
  • Mounting: Surface mount technology (SMT)
  • Thickness: 0.091" (2.30mm)
  • Packaging: Tape & reel
  • ECCN: EAR99
  • REACH: Unaffected
