Same model may have multiple batches, images only for reference.

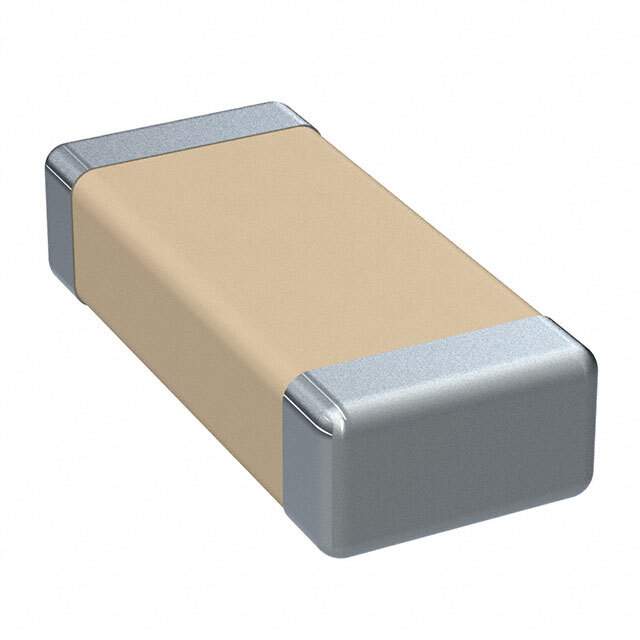

C1206C181J1GAC7800 Real Image
Same model may have multiple batches, images only for reference.

C1206C181J1GAC7800

Part No C1206C181J1GAC7800
Manufacturer Kemet
Catalog Ceramic Capacitors
Description CAP CER 180PF 100V C0G/NP0 1206 / 180 pF ±5% 100V Ceramic Capacitor C0G, NP0 1206 (3216 Metric)
Datasheet
C1206C181J1GAC7800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KEMET
Series SMD Comm C0G
Package Tape & Reel
Capacitance 180 pF
Tolerance ±5%
Voltage - Rated 100V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.035" (0.88mm)
Base Product Number C1206C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 399-C1206C181J1GAC7800CT,339-C1206C181J1GAC7800DKR,339-C1206C181J1GAC7800CT,C1206C181J1GACTU,C1206C181J1GAC,399-C1206C181J1GAC7800DKR,399-9324-2-ND,399-9324-1-ND,399-C1206C181J1GAC7800TR,399-9324-6-ND,399-9324-6,C1206C181J1GACTU-ND,399-9324-1,399-9324-2,C1206C181J1GAC7800
Standard Package 4,000
Win Source Part Number 974036-C1206C181J1GAC7800
Ultra Librarian 3D Model Ultra Librarian C1206C181J1GAC7800 CAD Model

Description

The C1206C181J1GAC7800 is a ceramic capacitor from KEMET.

  • Capacitance: 180 pF
  • Tolerance: ±5%
  • Voltage Rated: 100V
  • Temperature Coefficient: C0G, NP0
  • Height Seated (Max): Not Specified
  • Package: Tape and Reel
  • Application: General-Purpose
  • Package/Case: 1206 (3216 Metric)
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
