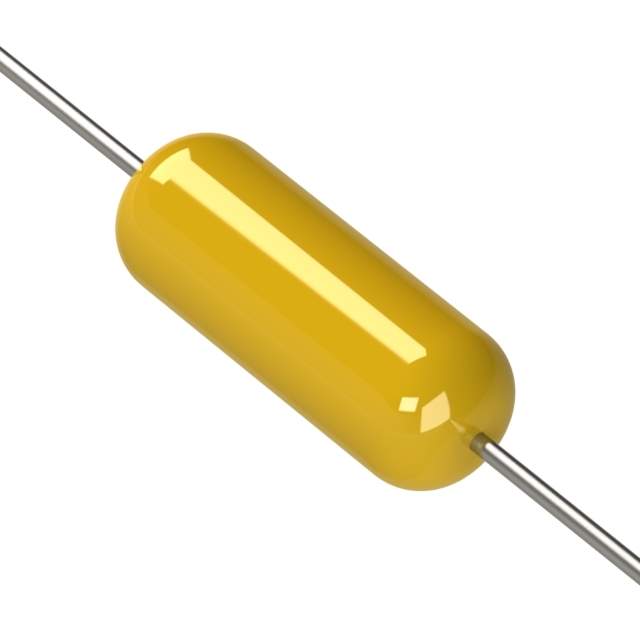

SA401A562JAA Real Image
Same model may have multiple batches, images only for reference.

SA401A562JAA

Part No SA401A562JAA
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SA401A562JAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SpinGuard® SA
Package Tape & Reel (TR)
Capacitance 5600 pF
Tolerance ±5%
Voltage - Rated 100V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Axial
Dimension 0.150" Dia x 0.400" L (3.81mm x 10.16mm)
Lead Style Straight
Standard Package 5,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0040
Win Source Part Number 1303819-SA401A562JAA
Ultra Librarian 3D Model Ultra Librarian SA401A562JAA CAD Model

Description

The KYOCERA AVX SpinGuard® SA 1303819-SA401A562JAA is a ceramic capacitor with a capacitance of 5600 pF and a voltage rating of 100V.

  • Tolerance: ±5%
  • Temperature Coefficient: C0G, NP0
  • Application: Designed for general purpose applications
  • Package: Tape and Reel
  • Height when seated: Not Specified
  • Package Type: Axial
  • Lead Style: Straight
  • Operating Temperature: Between -55°C and 125°C
  • Dimension: 0.150" Dia x 0.400" L (3.81mm x 10.16mm)
  • RoHS: Non-compliant
