Same model may have multiple batches, images only for reference.

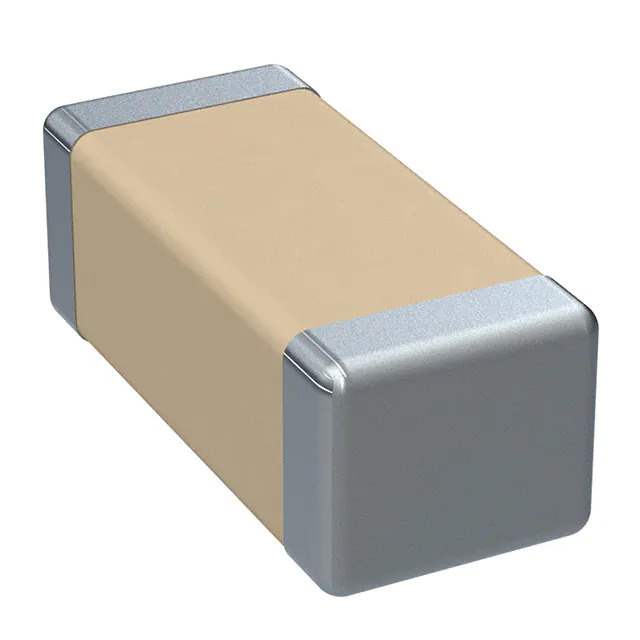

C1206C102KCRAC7800 Real Image
Same model may have multiple batches, images only for reference.

C1206C102KCRAC7800

Part No C1206C102KCRAC7800
Manufacturer Kemet
Catalog Ceramic Capacitors
Description CAP CER 1000PF 500V X7R 1206
Datasheet
C1206C102KCRAC7800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr KEMET
Series SMD Comm X7R HV
Package Tape & Reel
Product Status Active
Capacitance 1000 pF
Tolerance ±10%
Voltage - Rated 500V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL, High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.069" (1.75mm)
Base Product Number C1206C
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 820039-C1206C102KCRAC7800
Ultra Librarian 3D Model Ultra Librarian C1206C102KCRAC7800 CAD Model

Description

The 820039-C1206C102KCRAC7800 is a ceramic capacitor from KEMET's SMD Comm X7R HV series.

  • Capacitance: 1000 pF
  • Tolerance: ±10%
  • Voltage: 500V
  • Temperature Coefficient: X7R
  • ESL: Low
  • Package Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Package Type: Tape & reel
  • Thickness: 0.069" (1.75mm)
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 125°C
  • Product Status: Active
